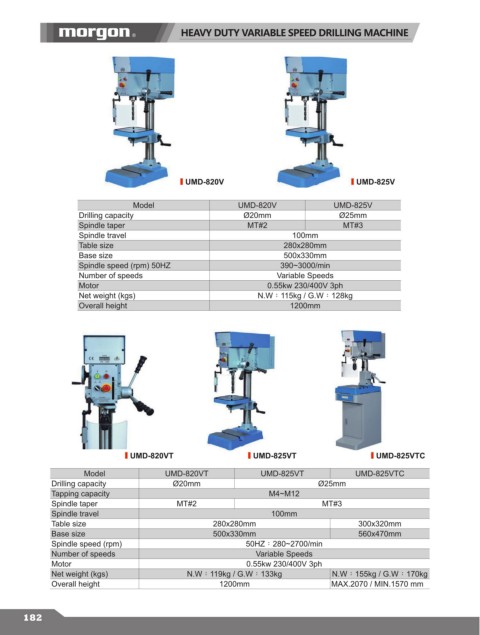

HEAVY DUTY VARIABLE SPEED DRILLING MACHINE

UMD-820V UMD-825V

Model UMD-820V UMD-825V
Drilling capacity Ø20mm Ø25mm
Spindle taper MT#2 MT#3
Spindle travel 100mm
Table size 280x280mm
Base size 500x330mm
Spindle speed (rpm) 50HZ 390~3000/min
Number of speeds Variable Speeds
Motor 0.55kw 230/400V 3ph
Net weight (kgs) N.W：115kg / G.W：128kg
Overall height 1200mm

UMD-820VT UMD-825VT UMD-825VTC

Model UMD-820VT UMD-825VT UMD-825VTC
Drilling capacity Ø20mm Ø25mm
Tapping capacity M4~M12
Spindle taper MT#2 MT#3
Spindle travel 100mm
Table size 280x280mm 300x320mm
Base size 500x330mm 560x470mm
Spindle speed (rpm) 50HZ：280~2700/min
Number of speeds Variable Speeds
Motor 0.55kw 230/400V 3ph
Net weight (kgs) N.W：119kg / G.W：133kg N.W：155kg / G.W：170kg
Overall height 1200mm MAX.2070 / MIN.1570 mm
