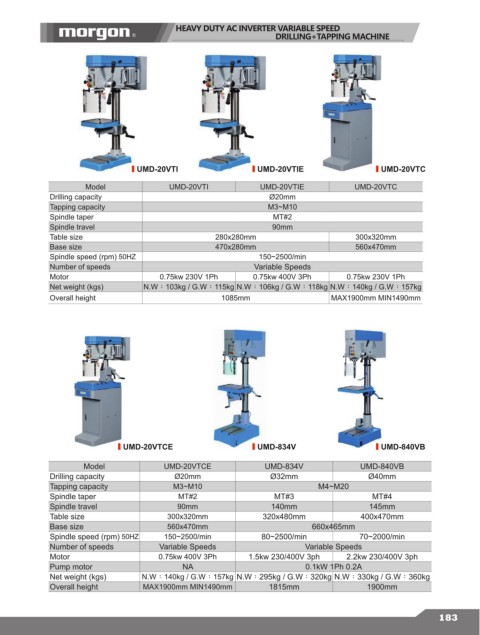

HEAVY DUTY AC INVERTER VARIABLE SPEED
DRILLING+TAPPING MACHINE

UMD-20VTI UMD-20VTIE UMD-20VTC

Model UMD-20VTI UMD-20VTIE UMD-20VTC
Drilling capacity Ø20mm
Tapping capacity M3~M10
Spindle taper MT#2
Spindle travel 90mm
Table size 280x280mm 300x320mm
Base size 470x280mm 560x470mm
Spindle speed (rpm) 50HZ 150~2500/min
Number of speeds Variable Speeds
Motor 0.75kw 230V 1Ph 0.75kw 400V 3Ph 0.75kw 230V 1Ph
Net weight (kgs) N.W：103kg / G.W：115kg N.W：106kg / G.W：118kg N.W：140kg / G.W：157kg
Overall height 1085mm MAX1900mm MIN1490mm

UMD-20VTCE UMD-834V UMD-840VB

Model UMD-20VTCE UMD-834V UMD-840VB
Drilling capacity Ø20mm Ø32mm Ø40mm
Tapping capacity M3~M10 M4~M20
Spindle taper MT#2 MT#3 MT#4
Spindle travel 90mm 140mm 145mm
Table size 300x320mm 320x480mm 400x470mm
Base size 560x470mm 660x465mm
Spindle speed (rpm) 50HZ 150~2500/min 80~2500/min 70~2000/min
Number of speeds Variable Speeds Variable Speeds
Motor 0.75kw 400V 3Ph 1.5kw 230/400V 3ph 2.2kw 230/400V 3ph
Pump motor NA 0.1kW 1Ph 0.2A
Net weight (kgs) N.W：140kg / G.W：157kg N.W：295kg / G.W：320kg N.W：330kg / G.W：360kg
Overall height MAX1900mm MIN1490mm 1815mm 1900mm
