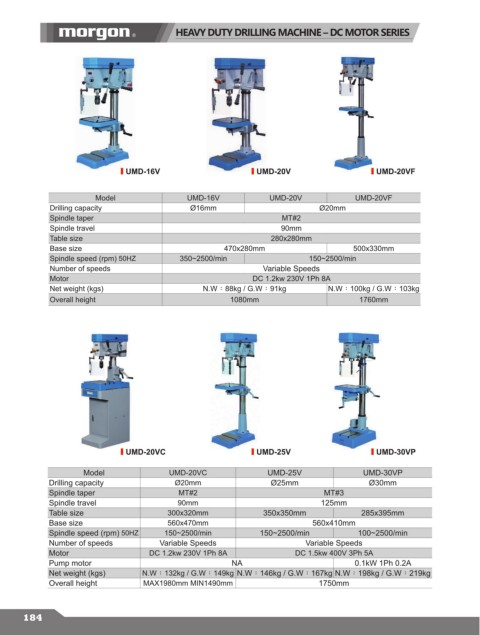

HEAVY DUTY DRILLING MACHINE – DC MOTOR SERIES

UMD-16V UMD-20V UMD-20VF

Model UMD-16V UMD-20V UMD-20VF
Drilling capacity Ø16mm Ø20mm
Spindle taper MT#2
Spindle travel 90mm
Table size 280x280mm
Base size 470x280mm 500x330mm
Spindle speed (rpm) 50HZ 350~2500/min 150~2500/min
Number of speeds Variable Speeds
Motor DC 1.2kw 230V 1Ph 8A
Net weight (kgs) N.W：88kg / G.W：91kg N.W：100kg / G.W：103kg
Overall height 1080mm 1760mm

UMD-20VC UMD-25V UMD-30VP

Model UMD-20VC UMD-25V UMD-30VP
Drilling capacity Ø20mm Ø25mm Ø30mm
Spindle taper MT#2 MT#3
Spindle travel 90mm 125mm
Table size 300x320mm 350x350mm 285x395mm
Base size 560x470mm 560x410mm
Spindle speed (rpm) 50HZ 150~2500/min 150~2500/min 100~2500/min
Number of speeds Variable Speeds Variable Speeds
Motor DC 1.2kw 230V 1Ph 8A DC 1.5kw 400V 3Ph 5A
Pump motor NA 0.1kW 1Ph 0.2A
Net weight (kgs) N.W：132kg / G.W：149kg N.W：146kg / G.W：167kg N.W：198kg / G.W：219kg
Overall height MAX1980mm MIN1490mm 1750mm
