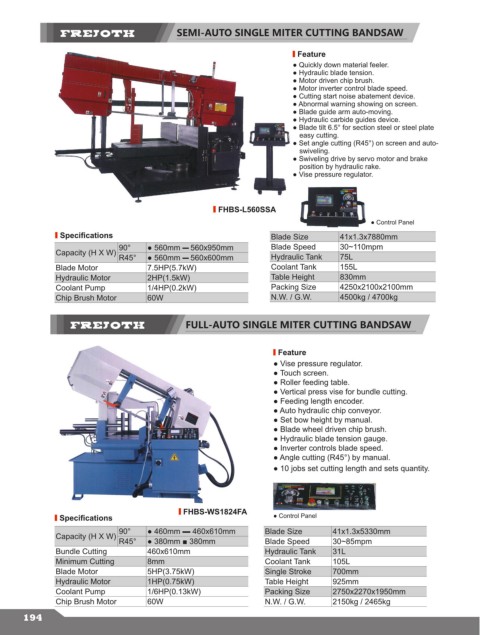

SEMI-AUTO SINGLE MITER CUTTING BANDSAW

Feature
● Quickly down material feeler.
● Hydraulic blade tension.
● Motor driven chip brush.
● Motor inverter control blade speed.
● Cutting start noise abatement device.
● Abnormal warning showing on screen.
● Blade guide arm auto-moving.
● Hydraulic carbide guides device.
● Blade tilt 6.5° for section steel or steel plate
easy cutting.
● Set angle cutting (R45°) on screen and auto-
swiveling.
● Swiveling drive by servo motor and brake
position by hydraulic rake.
● Vise pressure regulator.

FHBS-L560SSA

● Control Panel
Specifications Blade Size 41x1.3x7880mm
90° ● 560mm ▬ 560x950mm Blade Speed 30~110mpm
Capacity (H X W)
R45° ● 560mm ▬ 560x600mm Hydraulic Tank 75L
Blade Motor 7.5HP(5.7kW) Coolant Tank 155L
Hydraulic Motor 2HP(1.5kW) Table Height 830mm
Coolant Pump 1/4HP(0.2kW) Packing Size 4250x2100x2100mm
Chip Brush Motor 60W N.W. / G.W. 4500kg / 4700kg

FULL-AUTO SINGLE MITER CUTTING BANDSAW

Feature
● Vise pressure regulator.
● Touch screen.
● Roller feeding table.
● Vertical press vise for bundle cutting.
● Feeding length encoder.
● Auto hydraulic chip conveyor.
● Set bow height by manual.
● Blade wheel driven chip brush.
● Hydraulic blade tension gauge.
● Inverter controls blade speed.
● Angle cutting (R45°) by manual.
● 10 jobs set cutting length and sets quantity.

FHBS-WS1824FA
Specifications ● Control Panel
90° ● 460mm ▬ 460x610mm Blade Size 41x1.3x5330mm
Capacity (H X W)
R45° ● 380mm ■ 380mm Blade Speed 30~85mpm
Bundle Cutting 460x610mm Hydraulic Tank 31L
Minimum Cutting 8mm Coolant Tank 105L
Blade Motor 5HP(3.75kW) Single Stroke 700mm
Hydraulic Motor 1HP(0.75kW) Table Height 925mm
Coolant Pump 1/6HP(0.13kW) Packing Size 2750x2270x1950mm
Chip Brush Motor 60W N.W. / G.W. 2150kg / 2465kg

194
