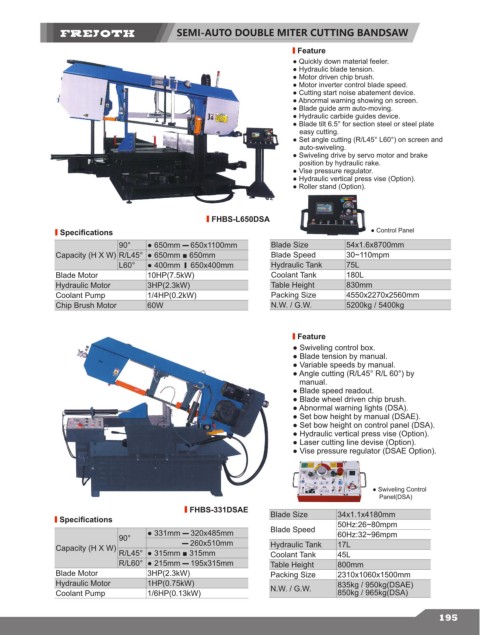

SEMI-AUTO DOUBLE MITER CUTTING BANDSAW

Feature
● Quickly down material feeler.
● Hydraulic blade tension.
● Motor driven chip brush.
● Motor inverter control blade speed.
● Cutting start noise abatement device.
● Abnormal warning showing on screen.
● Blade guide arm auto-moving.
● Hydraulic carbide guides device.
● Blade tilt 6.5° for section steel or steel plate
easy cutting.
● Set angle cutting (R/L45° L60°) on screen and
auto-swiveling.
● Swiveling drive by servo motor and brake
position by hydraulic rake.
● Vise pressure regulator.
● Hydraulic vertical press vise (Option).
● Roller stand (Option).

FHBS-L650DSA
Specifications ● Control Panel
90° ● 650mm ▬ 650x1100mm Blade Size 54x1.6x8700mm
Capacity (H X W) R/L45° ● 650mm ■ 650mm Blade Speed 30~110mpm
L60° ● 400mm ▌ 650x400mm Hydraulic Tank 75L
Blade Motor 10HP(7.5kW) Coolant Tank 180L
Hydraulic Motor 3HP(2.3kW) Table Height 830mm
Coolant Pump 1/4HP(0.2kW) Packing Size 4550x2270x2560mm
Chip Brush Motor 60W N.W. / G.W. 5200kg / 5400kg

Feature
● Swiveling control box.
● Blade tension by manual.
● Variable speeds by manual.
● Angle cutting (R/L45° R/L 60°) by
manual.
● Blade speed readout.
● Blade wheel driven chip brush.
● Abnormal warning lights (DSA).
● Set bow height by manual (DSAE).
● Set bow height on control panel (DSA).
● Hydraulic vertical press vise (Option).
● Laser cutting line devise (Option).
● Vise pressure regulator (DSAE Option).

● Swiveling Control
Panel(DSA)
FHBS-331DSAE
Specifications Blade Size 34x1.1x4180mm
50Hz:26~80mpm
● 331mm ▬ 320x485mm Blade Speed 60Hz:32~96mpm
90° ▬ 260x510mm
Capacity (H X W) Hydraulic Tank 17L
R/L45° ● 315mm ■ 315mm Coolant Tank 45L
R/L60° ● 215mm ▬ 195x315mm Table Height 800mm
Blade Motor 3HP(2.3kW) Packing Size 2310x1060x1500mm
Hydraulic Motor 1HP(0.75kW) 835kg / 950kg(DSAE)
Coolant Pump 1/6HP(0.13kW) N.W. / G.W. 850kg / 965kg(DSA)
