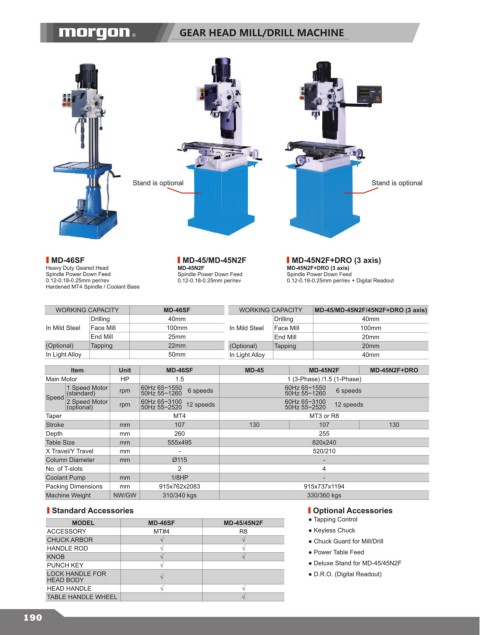

GEAR HEAD MILL/DRILL MACHINE

Stand is optional Stand is optional

MD-46SF MD-45/MD-45N2F MD-45N2F+DRO (3 axis)
Heavy Duty Geared Head MD-45N2F MD-45N2F+DRO (3 axis)
Spindle Power Down Feed Spindle Power Down Feed Spindle Power Down Feed
0.12-0.18-0.25mm per/rev 0.12-0.18-0.25mm per/rev 0.12-0.18-0.25mm per/rev + Digital Readout
Hardened MT4 Spindle / Coolant Base

WORKING CAPACITY MD-46SF WORKING CAPACITY MD-45/MD-45N2F/45N2F+DRO (3 axis)
Drilling 40mm Drilling 40mm
In Mild Steel Face Mill 100mm In Mild Steel Face Mill 100mm
End Mill 25mm End Mill 20mm
(Optional) Tapping 22mm (Optional) Tapping 20mm
In Light Alloy 50mm In Light Alloy 40mm
ltem Unit MD-46SF MD-45 MD-45N2F MD-45N2F+DRO

Main Motor HP 1.5 1 (3-Phase) /1.5 (1-Phase)
1 Speed Motor rpm 60Hz 65~1550 6 speeds 60Hz 65~1550 6 speeds
Speed (standard) 50Hz 55~1260 50Hz 55~1260
2 Speed Motor 60Hz 65~3100 60Hz 65~3100
(optional) rpm 50Hz 55~2520 12 speeds 50Hz 55~2520 12 speeds
Taper MT4 MT3 or R8
Stroke mm 107 130 107 130
Depth mm 260 255
Table Size mm 555x495 820x240
X Travel/Y Travel mm - 520/210
Column Diameter mm Ø115 -
No. of T-slots 2 4
Coolant Pump mm 1/8HP -
Packing Dimensions mm 915x762x2083 915x737x1194
Machine Weight NW/GW 310/340 kgs 330/360 kgs
Standard Accessories Optional Accessories

MODEL MD-46SF MD-45/45N2F ● Tapping Control
ACCESSORY MT#4 R8 ● Keyless Chuck
CHUCK ARBOR √ √ ● Chuck Guard for Mill/Drill
HANDLE ROD √ √ ● Power Table Feed
KNOB √ √
PUNCH KEY √ ● Deluxe Stand for MD-45/45N2F
LOCK HANDLE FOR √ ● D.R.O. (Digital Readout)
HEAD BODY
HEAD HANDLE √ √
TABLE HANDLE WHEEL √
