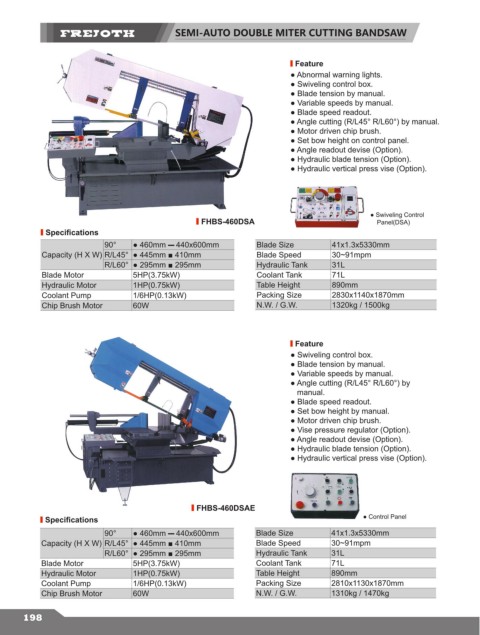

SEMI-AUTO DOUBLE MITER CUTTING BANDSAW

Feature
● Abnormal warning lights.
● Swiveling control box.
● Blade tension by manual.
● Variable speeds by manual.
● Blade speed readout.
● Angle cutting (R/L45° R/L60°) by manual.
● Motor driven chip brush.
● Set bow height on control panel.
● Angle readout devise (Option).
● Hydraulic blade tension (Option).
● Hydraulic vertical press vise (Option).

● Swiveling Control
FHBS-460DSA Panel(DSA)
Specifications
90° ● 460mm ▬ 440x600mm Blade Size 41x1.3x5330mm
Capacity (H X W) R/L45° ● 445mm ■ 410mm Blade Speed 30~91mpm
R/L60° ● 295mm ■ 295mm Hydraulic Tank 31L
Blade Motor 5HP(3.75kW) Coolant Tank 71L
Hydraulic Motor 1HP(0.75kW) Table Height 890mm
Coolant Pump 1/6HP(0.13kW) Packing Size 2830x1140x1870mm
Chip Brush Motor 60W N.W. / G.W. 1320kg / 1500kg

Feature
● Swiveling control box.
● Blade tension by manual.
● Variable speeds by manual.
● Angle cutting (R/L45° R/L60°) by
manual.
● Blade speed readout.
● Set bow height by manual.
● Motor driven chip brush.
● Vise pressure regulator (Option).
● Angle readout devise (Option).
● Hydraulic blade tension (Option).
● Hydraulic vertical press vise (Option).

FHBS-460DSAE
Specifications ● Control Panel
90° ● 460mm ▬ 440x600mm Blade Size 41x1.3x5330mm
Capacity (H X W) R/L45° ● 445mm ■ 410mm Blade Speed 30~91mpm
R/L60° ● 295mm ■ 295mm Hydraulic Tank 31L
Blade Motor 5HP(3.75kW) Coolant Tank 71L
Hydraulic Motor 1HP(0.75kW) Table Height 890mm
Coolant Pump 1/6HP(0.13kW) Packing Size 2810x1130x1870mm
Chip Brush Motor 60W N.W. / G.W. 1310kg / 1470kg

198
