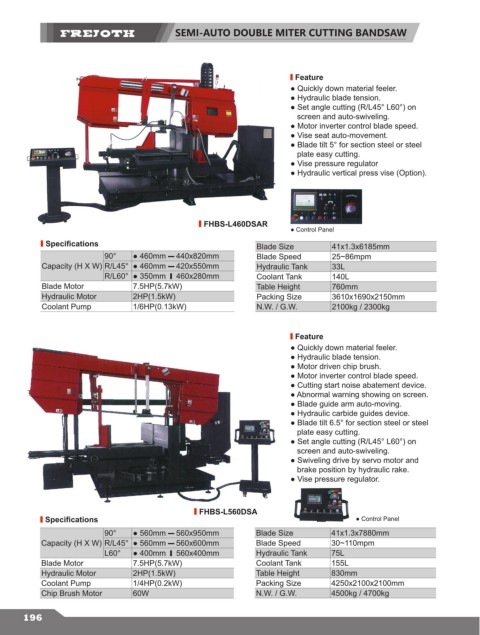

SEMI-AUTO DOUBLE MITER CUTTING BANDSAW

Feature
● Quickly down material feeler.
● Hydraulic blade tension.
● Set angle cutting (R/L45° L60°) on
screen and auto-swiveling.
● Motor inverter control blade speed.
● Vise seat auto-movement.
● Blade tilt 5° for section steel or steel
plate easy cutting.
● Vise pressure regulator
● Hydraulic vertical press vise (Option).

FHBS-L460DSAR
● Control Panel
Specifications Blade Size 41x1.3x6185mm
90° ● 460mm ▬ 440x820mm Blade Speed 25~86mpm
Capacity (H X W) R/L45° ● 460mm ▬ 420x550mm Hydraulic Tank 33L
R/L60° ● 350mm ▌ 460x280mm Coolant Tank 140L
Blade Motor 7.5HP(5.7kW) Table Height 760mm
Hydraulic Motor 2HP(1.5kW) Packing Size 3610x1690x2150mm
Coolant Pump 1/6HP(0.13kW) N.W. / G.W. 2100kg / 2300kg

Feature
● Quickly down material feeler.
● Hydraulic blade tension.
● Motor driven chip brush.
● Motor inverter control blade speed.
● Cutting start noise abatement device.
● Abnormal warning showing on screen.
● Blade guide arm auto-moving.
● Hydraulic carbide guides device.
● Blade tilt 6.5° for section steel or steel
plate easy cutting.
● Set angle cutting (R/L45° L60°) on
screen and auto-swiveling.
● Swiveling drive by servo motor and
brake position by hydraulic rake.
● Vise pressure regulator.

FHBS-L560DSA
Specifications ● Control Panel
90° ● 560mm ▬ 560x950mm Blade Size 41x1.3x7880mm
Capacity (H X W) R/L45° ● 560mm ▬ 560x600mm Blade Speed 30~110mpm
L60° ● 400mm ▌ 560x400mm Hydraulic Tank 75L
Blade Motor 7.5HP(5.7kW) Coolant Tank 155L
Hydraulic Motor 2HP(1.5kW) Table Height 830mm
Coolant Pump 1/4HP(0.2kW) Packing Size 4250x2100x2100mm
Chip Brush Motor 60W N.W. / G.W. 4500kg / 4700kg
