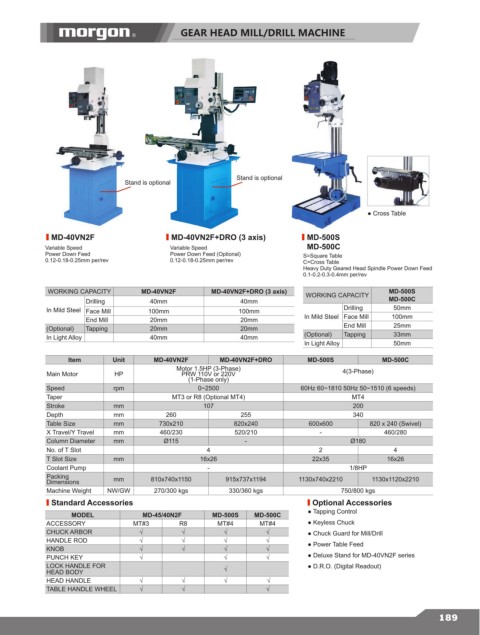

GEAR HEAD MILL/DRILL MACHINE

Stand is optional
Stand is optional

● Cross Table

MD-40VN2F MD-40VN2F+DRO (3 axis) MD-500S
Variable Speed Variable Speed MD-500C
Power Down Feed Power Down Feed (Optional) S=Square Table
0.12-0.18-0.25mm per/rev 0.12-0.18-0.25mm per/rev C=Cross Table
Heavy Duty Geared Head Spindle Power Down Feed
0.1-0.2-0.3-0.4mm per/rev

WORKING CAPACITY MD-40VN2F MD-40VN2F+DRO (3 axis) WORKING CAPACITY MD-500S
Drilling 40mm 40mm MD-500C
In Mild Steel Face Mill 100mm 100mm Drilling 50mm
End Mill 20mm 20mm In Mild Steel Face Mill 100mm
(Optional) Tapping 20mm 20mm End Mill 25mm
In Light Alloy 40mm 40mm (Optional) Tapping 33mm
In Light Alloy 50mm
ltem Unit MD-40VN2F MD-40VN2F+DRO MD-500S MD-500C
Motor 1.5HP (3-Phase) 4(3-Phase)
Main Motor HP PRW 110V or 220V
(1-Phase only)
Speed rpm 0~2500 60Hz 60~1810 50Hz 50~1510 (6 speeds)
Taper MT3 or R8 (Optional MT4) MT4
Stroke mm 107 200
Depth mm 260 255 340
Table Size mm 730x210 820x240 600x600 820 x 240 (Swivel)
X Travel/Y Travel mm 460/230 520/210 - 460/280
Column Diameter mm Ø115 - Ø180
No. of T Slot 4 2 4
T Slot Size mm 16x26 22x35 16x26
Coolant Pump - 1/8HP
Packing
Dimensions mm 810x740x1150 915x737x1194 1130x740x2210 1130x1120x2210
Machine Weight NW/GW 270/300 kgs 330/360 kgs 750/800 kgs
Standard Accessories Optional Accessories

MODEL MD-45/40N2F MD-500S MD-500C ● Tapping Control
ACCESSORY MT#3 R8 MT#4 MT#4 ● Keyless Chuck
CHUCK ARBOR √ √ √ √ ● Chuck Guard for Mill/Drill
HANDLE ROD √ √ √ √ ● Power Table Feed
KNOB √ √ √ √
PUNCH KEY √ √ √ ● Deluxe Stand for MD-40VN2F series
LOCK HANDLE FOR √ ● D.R.O. (Digital Readout)
HEAD BODY
HEAD HANDLE √ √ √ √
TABLE HANDLE WHEEL √ √ √

189
