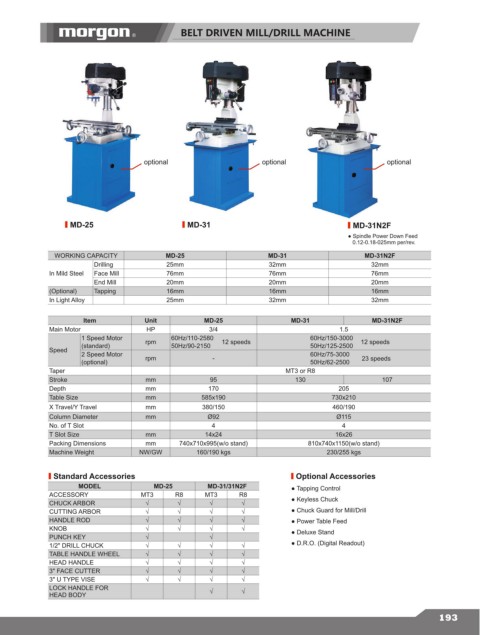

BELT DRIVEN MILL/DRILL MACHINE

optional optional optional

MD-25 MD-31 MD-31N2F
● Spindle Power Down Feed
0.12-0.18-025mm per/rev.
WORKING CAPACITY MD-25 MD-31 MD-31N2F
Drilling 25mm 32mm 32mm
In Mild Steel Face Mill 76mm 76mm 76mm
End Mill 20mm 20mm 20mm
(Optional) Tapping 16mm 16mm 16mm
In Light Alloy 25mm 32mm 32mm

ltem Unit MD-25 MD-31 MD-31N2F
Main Motor HP 3/4 1.5
1 Speed Motor rpm 60Hz/110-2580 12 speeds 60Hz/150-3000 12 speeds
(standard) 50Hz/90-2150 50Hz/125-2500
Speed
2 Speed Motor rpm - 60Hz/75-3000 23 speeds
(optional) 50Hz/62-2500
Taper MT3 or R8
Stroke mm 95 130 107
Depth mm 170 205
Table Size mm 585x190 730x210
X Travel/Y Travel mm 380/150 460/190
Column Diameter mm Ø92 Ø115
No. of T Slot 4 4
T Slot Size mm 14x24 16x26
Packing Dimensions mm 740x710x995(w/o stand) 810x740x1150(w/o stand)
Machine Weight NW/GW 160/190 kgs 230/255 kgs

Standard Accessories Optional Accessories
MODEL MD-25 MD-31/31N2F ● Tapping Control
ACCESSORY MT3 R8 MT3 R8
CHUCK ARBOR √ √ √ √ ● Keyless Chuck
CUTTING ARBOR √ √ √ √ ● Chuck Guard for Mill/Drill
HANDLE ROD √ √ √ √ ● Power Table Feed
KNOB √ √ √ √ ● Deluxe Stand
PUNCH KEY √ √
1/2" DRILL CHUCK √ √ √ √ ● D.R.O. (Digital Readout)
TABLE HANDLE WHEEL √ √ √ √
HEAD HANDLE √ √ √ √
3" FACE CUTTER √ √ √ √
3" U TYPE VISE √ √ √ √
LOCK HANDLE FOR
HEAD BODY √ √
