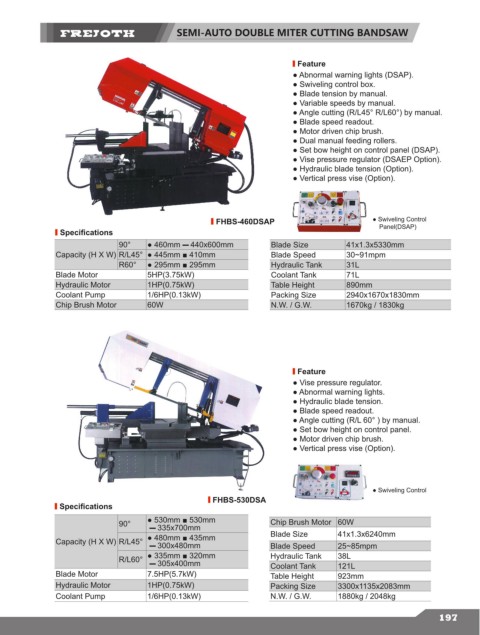

SEMI-AUTO DOUBLE MITER CUTTING BANDSAW

Feature
● Abnormal warning lights (DSAP).
● Swiveling control box.
● Blade tension by manual.
● Variable speeds by manual.
● Angle cutting (R/L45° R/L60°) by manual.
● Blade speed readout.
● Motor driven chip brush.
● Dual manual feeding rollers.
● Set bow height on control panel (DSAP).
● Vise pressure regulator (DSAEP Option).
● Hydraulic blade tension (Option).
● Vertical press vise (Option).

FHBS-460DSAP ● Swiveling Control
Specifications Panel(DSAP)
90° ● 460mm ▬ 440x600mm Blade Size 41x1.3x5330mm
Capacity (H X W) R/L45° ● 445mm ■ 410mm Blade Speed 30~91mpm
R60° ● 295mm ■ 295mm Hydraulic Tank 31L
Blade Motor 5HP(3.75kW) Coolant Tank 71L
Hydraulic Motor 1HP(0.75kW) Table Height 890mm
Coolant Pump 1/6HP(0.13kW) Packing Size 2940x1670x1830mm
Chip Brush Motor 60W N.W. / G.W. 1670kg / 1830kg

Feature
● Vise pressure regulator.
● Abnormal warning lights.
● Hydraulic blade tension.
● Blade speed readout.
● Angle cutting (R/L 60° ) by manual.
● Set bow height on control panel.
● Motor driven chip brush.
● Vertical press vise (Option).

● Swiveling Control
FHBS-530DSA
Specifications

90° ● 530mm ■ 530mm Chip Brush Motor 60W
▬ 335x700mm
Capacity (H X W) R/L45° ● 480mm ■ 435mm Blade Size 41x1.3x6240mm
Blade Speed
▬ 300x480mm
25~85mpm
R/L60° ● 335mm ■ 320mm Hydraulic Tank 38L
▬ 305x400mm
121L
Coolant Tank
Blade Motor 7.5HP(5.7kW) Table Height 923mm
Hydraulic Motor 1HP(0.75kW) Packing Size 3300x1135x2083mm
Coolant Pump 1/6HP(0.13kW) N.W. / G.W. 1880kg / 2048kg
