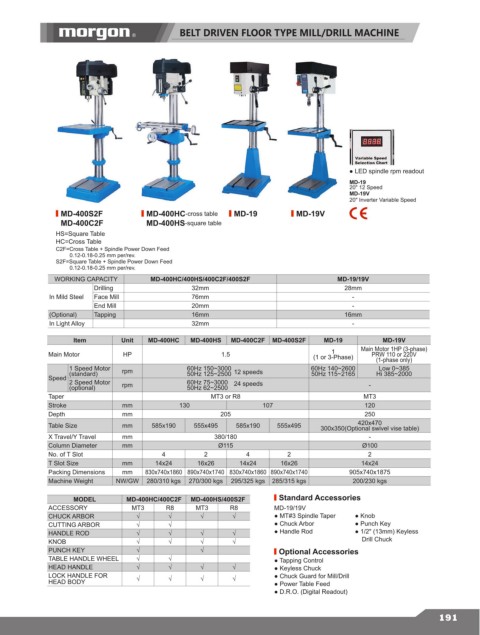

BELT DRIVEN FLOOR TYPE MILL/DRILL MACHINE

● LED spindle rpm readout
MD-19
20" 12 Speed
MD-19V
20" Inverter Variable Speed
MD-400S2F MD-400HC-cross table MD-19 MD-19V
MD-400C2F MD-400HS-square table
HS=Square Table
HC=Cross Table
C2F=Cross Table + Spindle Power Down Feed
0.12-0.18-0.25 mm per/rev.
S2F=Square Table + Spindle Power Down Feed
0.12-0.18-0.25 mm per/rev.
WORKING CAPACITY MD-400HC/400HS/400C2F/400S2F MD-19/19V
Drilling 32mm 28mm
In Mild Steel Face Mill 76mm -
End Mill 20mm -
(Optional) Tapping 16mm 16mm
In Light Alloy 32mm -

ltem Unit MD-400HC MD-400HS MD-400C2F MD-400S2F MD-19 MD-19V
1
PRW 110 or 220V
Main Motor HP 1.5 (1 or 3-Phase) Main Motor 1HP (3-phase)
(1-phase only)
1 Speed Motor rpm 60Hz 150~3000 12 speeds 60Hz 140~2600 Low 0~385
Speed (standard) 50Hz 125~2500 50Hz 115~2165 Hi 385~2000
2 Speed Motor rpm 60Hz 75~3000 24 speeds -
(optional) 50Hz 62~2500
Taper MT3 or R8 MT3
Stroke mm 130 107 120
Depth mm 205 250
420x470
Table Size mm 585x190 555x495 585x190 555x495 300x350(Optional swivel vise table)
X Travel/Y Travel mm 380/180 -
Column Diameter mm Ø115 Ø100
No. of T Slot 4 2 4 2 2
T Slot Size mm 14x24 16x26 14x24 16x26 14x24
Packing Dimensions mm 830x740x1860 890x740x1740 830x740x1860 890x740x1740 905x740x1875
Machine Weight NW/GW 280/310 kgs 270/300 kgs 295/325 kgs 285/315 kgs 200/230 kgs

MODEL MD-400HC/400C2F MD-400HS/400S2F Standard Accessories
ACCESSORY MT3 R8 MT3 R8 MD-19/19V
CHUCK ARBOR √ √ √ √ ● MT#3 Spindle Taper ● Knob
CUTTING ARBOR √ √ ● Chuck Arbor ● Punch Key
HANDLE ROD √ √ √ √ ● Handle Rod ● 1/2" (13mm) Keyless
KNOB √ √ √ √ Drill Chuck
PUNCH KEY √ √ Optional Accessories
TABLE HANDLE WHEEL √ √ ● Tapping Control
HEAD HANDLE √ √ √ √ ● Keyless Chuck
LOCK HANDLE FOR √ √ √ √ ● Chuck Guard for Mill/Drill
HEAD BODY ● Power Table Feed
● D.R.O. (Digital Readout)
