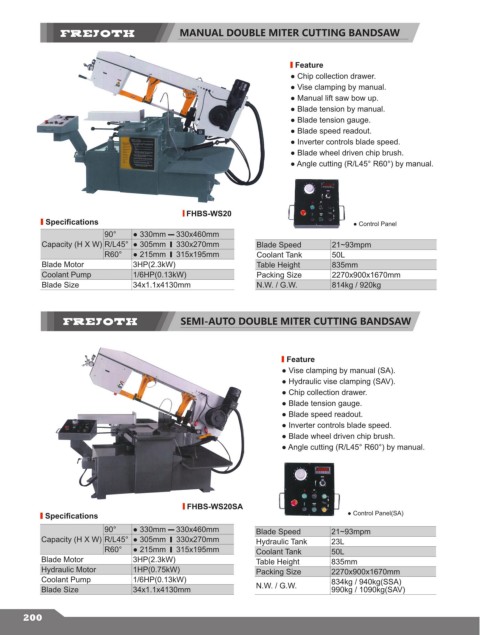

MANUAL DOUBLE MITER CUTTING BANDSAW

Feature
● Chip collection drawer.
● Vise clamping by manual.
● Manual lift saw bow up.
● Blade tension by manual.
● Blade tension gauge.
● Blade speed readout.
● Inverter controls blade speed.
● Blade wheel driven chip brush.
● Angle cutting (R/L45° R60°) by manual.

FHBS-WS20
Specifications ● Control Panel
90° ● 330mm ▬ 330x460mm
Capacity (H X W) R/L45° ● 305mm ▌ 330x270mm Blade Speed 21~93mpm
R60° ● 215mm ▌ 315x195mm Coolant Tank 50L
Blade Motor 3HP(2.3kW) Table Height 835mm
Coolant Pump 1/6HP(0.13kW) Packing Size 2270x900x1670mm
Blade Size 34x1.1x4130mm N.W. / G.W. 814kg / 920kg

SEMI-AUTO DOUBLE MITER CUTTING BANDSAW

Feature
● Vise clamping by manual (SA).
● Hydraulic vise clamping (SAV).
● Chip collection drawer.
● Blade tension gauge.
● Blade speed readout.
● Inverter controls blade speed.
● Blade wheel driven chip brush.
● Angle cutting (R/L45° R60°) by manual.

FHBS-WS20SA
Specifications ● Control Panel(SA)
90° ● 330mm ▬ 330x460mm Blade Speed 21~93mpm
Capacity (H X W) R/L45° ● 305mm ▌ 330x270mm Hydraulic Tank 23L
R60° ● 215mm ▌ 315x195mm Coolant Tank 50L
Blade Motor 3HP(2.3kW) Table Height 835mm
Hydraulic Motor 1HP(0.75kW) Packing Size 2270x900x1670mm
Coolant Pump 1/6HP(0.13kW) 834kg / 940kg(SSA)
Blade Size 34x1.1x4130mm N.W. / G.W. 990kg / 1090kg(SAV)

200
