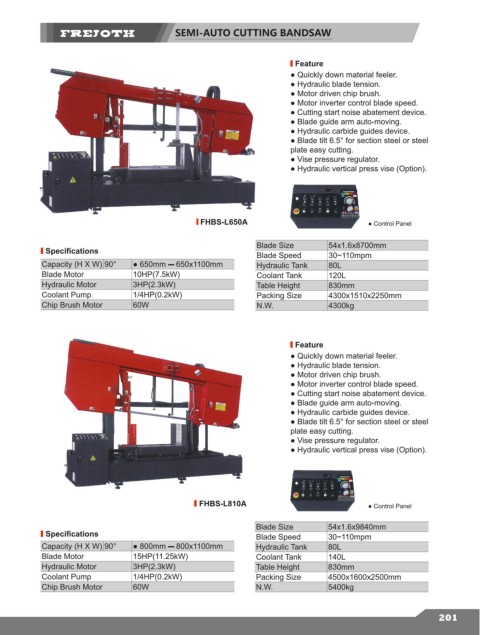

SEMI-AUTO CUTTING BANDSAW

Feature
● Quickly down material feeler.
● Hydraulic blade tension.
● Motor driven chip brush.
● Motor inverter control blade speed.
● Cutting start noise abatement device.
● Blade guide arm auto-moving.
● Hydraulic carbide guides device.
● Blade tilt 6.5° for section steel or steel
plate easy cutting.
● Vise pressure regulator.
● Hydraulic vertical press vise (Option).

FHBS-L650A ● Control Panel

Blade Size 54x1.6x8700mm
Specifications Blade Speed 30~110mpm
Capacity (H X W) 90° ● 650mm ▬ 650x1100mm Hydraulic Tank 80L
Blade Motor 10HP(7.5kW) Coolant Tank 120L
Hydraulic Motor 3HP(2.3kW) Table Height 830mm
Coolant Pump 1/4HP(0.2kW) Packing Size 4300x1510x2250mm
Chip Brush Motor 60W N.W. 4300kg

Feature
● Quickly down material feeler.
● Hydraulic blade tension.
● Motor driven chip brush.
● Motor inverter control blade speed.
● Cutting start noise abatement device.
● Blade guide arm auto-moving.
● Hydraulic carbide guides device.
● Blade tilt 6.5° for section steel or steel
plate easy cutting.
● Vise pressure regulator.
● Hydraulic vertical press vise (Option).

FHBS-L810A ● Control Panel

Blade Size 54x1.6x9840mm
Specifications Blade Speed 30~110mpm
Capacity (H X W) 90° ● 800mm ▬ 800x1100mm Hydraulic Tank 80L
Blade Motor 15HP(11.25kW) Coolant Tank 140L
Hydraulic Motor 3HP(2.3kW) Table Height 830mm
Coolant Pump 1/4HP(0.2kW) Packing Size 4500x1600x2500mm
Chip Brush Motor 60W N.W. 5400kg
