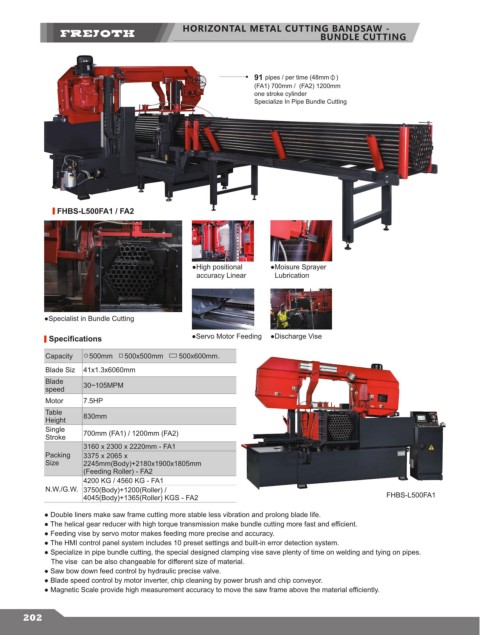

HORIZONTAL METAL CUTTING BANDSAW -
BUNDLE CUTTING

91 pipes / per time (48mm )
(FA1) 700mm / (FA2) 1200mm
one stroke cylinder
Specialize In Pipe Bundle Cutting

FHBS-L500FA1 / FA2

●High positional ●Moisure Sprayer
accuracy Linear Lubrication

●Specialist in Bundle Cutting

Specifications ●Servo Motor Feeding ●Discharge Vise

Capacity 500mm 500x500mm 500x600mm.
Blade Siz 41x1.3x6060mm
Blade 30~105MPM
speed
Motor 7.5HP
Table 830mm
Height
Single 700mm (FA1) / 1200mm (FA2)
Stroke
3160 x 2300 x 2220mm - FA1
Packing 3375 x 2065 x
Size 2245mm(Body)+2180x1900x1805mm
(Feeding Roller) - FA2
4200 KG / 4560 KG - FA1
N.W./G.W. 3750(Body)+1200(Roller) /
4045(Body)+1365(Roller) KGS - FA2 FHBS-L500FA1
● Double liners make saw frame cutting more stable less vibration and prolong blade life.
● The helical gear reducer with high torque transmission make bundle cutting more fast and efficient.
● Feeding vise by servo motor makes feeding more precise and accuracy.
● The HMI control panel system includes 10 preset settings and built-in error detection system.
● Specialize in pipe bundle cutting, the special designed clamping vise save plenty of time on welding and tying on pipes.
The vise can be also changeable for different size of material.
● Saw bow down feed control by hydraulic precise valve.
● Blade speed control by motor inverter, chip cleaning by power brush and chip conveyor.
● Magnetic Scale provide high measurement accuracy to move the saw frame above the material efficiently.
