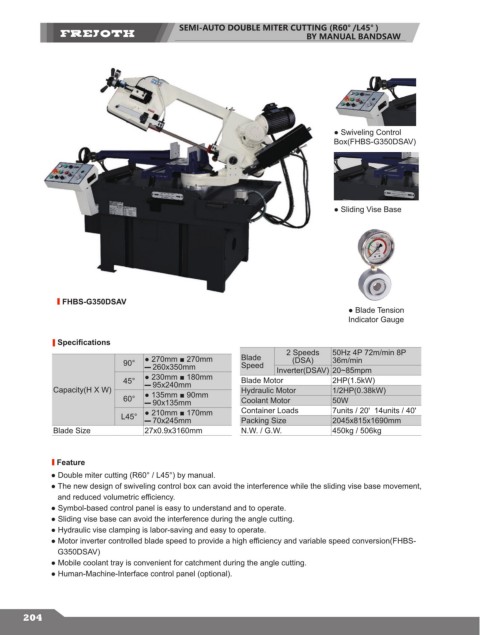

SEMI-AUTO DOUBLE MITER CUTTING (R60° /L45° )
BY MANUAL BANDSAW

● Swiveling Control
Box(FHBS-G350DSAV)

● Sliding Vise Base

FHBS-G350DSAV
● Blade Tension
Indicator Gauge

Specifications
2 Speeds 50Hz 4P 72m/min 8P
(DSA)
36m/min
90° ● 270mm ■ 270mm Blade Inverter(DSAV) 20~85mpm
Speed
▬ 260x350mm
45° ● 230mm ■ 180mm Blade Motor 2HP(1.5kW)
▬ 95x240mm
Capacity(H X W) Hydraulic Motor 1/2HP(0.38kW)
60° ● 135mm ■ 90mm Coolant Motor 50W
▬ 90x135mm
L45° ● 210mm ■ 170mm Container Loads 7units / 20' 14units / 40'
Packing Size
2045x815x1690mm
▬ 70x245mm
Blade Size 27x0.9x3160mm N.W. / G.W. 450kg / 506kg
Feature
● Double miter cutting (R60° / L45°) by manual.
● The new design of swiveling control box can avoid the interference while the sliding vise base movement,
and reduced volumetric efficiency.
● Symbol-based control panel is easy to understand and to operate.
● Sliding vise base can avoid the interference during the angle cutting.
● Hydraulic vise clamping is labor-saving and easy to operate.
● Motor inverter controlled blade speed to provide a high efficiency and variable speed conversion(FHBS-
G350DSAV)
● Mobile coolant tray is convenient for catchment during the angle cutting.
● Human-Machine-Interface control panel (optional).
