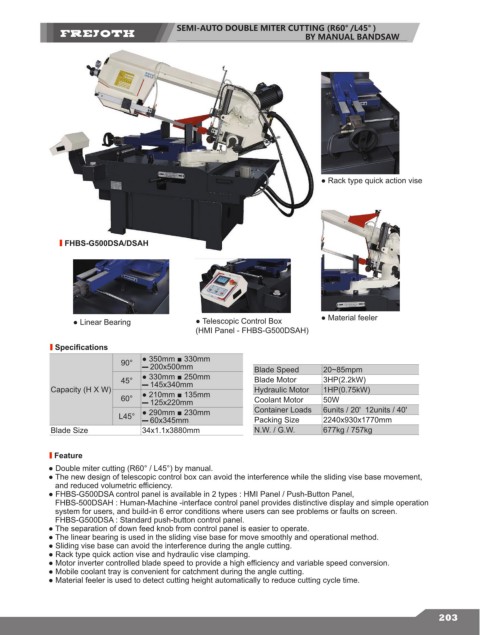

SEMI-AUTO DOUBLE MITER CUTTING (R60° /L45° )
BY MANUAL BANDSAW

● Rack type quick action vise

FHBS-G500DSA/DSAH

● Linear Bearing ● Telescopic Control Box ● Material feeler
(HMI Panel - FHBS-G500DSAH)
Specifications

90° ● 350mm ■ 330mm Blade Speed 20~85mpm
▬ 200x500mm
45° ● 330mm ■ 250mm Blade Motor 3HP(2.2kW)
▬ 145x340mm
Capacity (H X W) Hydraulic Motor 1HP(0.75kW)
60° ● 210mm ■ 135mm Coolant Motor 50W
▬ 125x220mm
L45° ● 290mm ■ 230mm Container Loads 6units / 20' 12units / 40'
Packing Size
2240x930x1770mm
▬ 60x345mm
Blade Size 34x1.1x3880mm N.W. / G.W. 677kg / 757kg
Feature
● Double miter cutting (R60° / L45°) by manual.
● The new design of telescopic control box can avoid the interference while the sliding vise base movement,
and reduced volumetric efficiency.
● FHBS-G500DSA control panel is available in 2 types : HMI Panel / Push-Button Panel,
FHBS-500DSAH : Human-Machine -interface control panel provides distinctive display and simple operation
system for users, and build-in 6 error conditions where users can see problems or faults on screen.
FHBS-G500DSA : Standard push-button control panel.
● The separation of down feed knob from control panel is easier to operate.
● The linear bearing is used in the sliding vise base for move smoothly and operational method.
● Sliding vise base can avoid the interference during the angle cutting.
● Rack type quick action vise and hydraulic vise clamping.
● Motor inverter controlled blade speed to provide a high efficiency and variable speed conversion.
● Mobile coolant tray is convenient for catchment during the angle cutting.
● Material feeler is used to detect cutting height automatically to reduce cutting cycle time.
