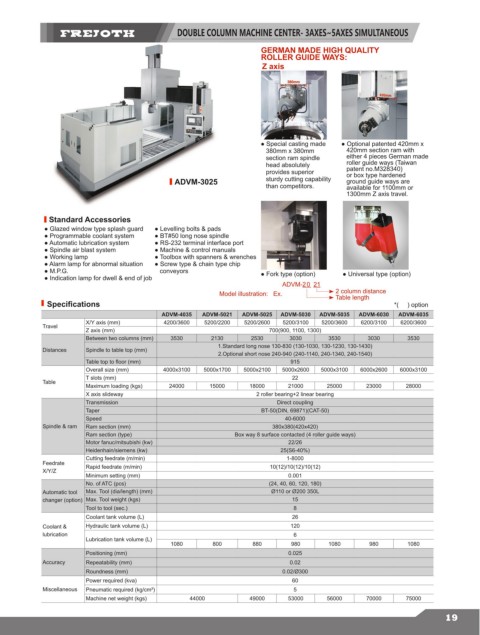

DOUBLE COLUMN MACHINE CENTER- 3AXES~5AXES SIMULTANEOUS

GERMAN MADE HIGH QUALITY
ROLLER GUIDE WAYS:
Z axis

● Special casting made ● Optional patented 420mm x
380mm x 380mm 420mm section ram with
section ram spindle either 4 pieces German made
head absolutely roller guide ways (Taiwan
provides superior patent no.M328340)
or box type hardened
ADVM-3025 sturdy cutting capability ground guide ways are
than competitors. available for 1100mm or
1300mm Z axis travel.

Standard Accessories
● Glazed window type splash guard ● Levelling bolts & pads
● Programmable coolant system ● BT#50 long nose spindle
● Automatic lubrication system ● RS-232 terminal interface port
● Spindle air blast system ● Machine & control manuals
● Working lamp ● Toolbox with spanners & wrenches
● Alarm lamp for abnormal situation ● Screw type & chain type chip
● M.P.G. conveyors ● Fork type (option) ● Universal type (option)
● Indication lamp for dwell & end of job
ADVM-20 21
Model illustration: Ex. 2 column distance
Table length
Specifications *( ) option
ADVM-4035 ADVM-5021 ADVM-5025 ADVM-5030 ADVM-5035 ADVM-6030 ADVM-6035
X/Y axis (mm) 4200/3600 5200/2200 5200/2600 5200/3100 5200/3600 6200/3100 6200/3600
Travel
Z axis (mm) 700(900, 1100, 1300)
Between two columns (mm) 3530 2130 2530 3030 3530 3030 3530
1.Standard long nose 130-830 (130-1030, 130-1230, 130-1430)
Distances Spindle to table top (mm)
2.Optional short nose 240-940 (240-1140, 240-1340, 240-1540)
Table top to floor (mm) 915
Overall size (mm) 4000x3100 5000x1700 5000x2100 5000x2600 5000x3100 6000x2600 6000x3100
T slots (mm) 22
Table
Maximum loading (kgs) 24000 15000 18000 21000 25000 23000 28000
X axis slideway 2 roller bearing+2 linear bearing
Transmission Direct coupling
Taper BT-50(DIN, 69871)(CAT-50)
Speed 40-6000
Spindle & ram Ram section (mm) 380x380(420x420)
Ram section (type) Box way 8 surface contacted (4 roller guide ways)
Motor fanuc/mitsubishi (kw) 22/26
Heidenhain/siemens (kw) 25(S6-40%)
Cutting feedrate (m/min) 1-8000
Feedrate Rapid feedrate (m/min) 10(12)/10(12)/10(12)
X/Y/Z
Minimum setting (mm) 0.001
No. of ATC (pcs) (24, 40, 60, 120, 180)
Automatic tool Max. Tool (dia/length) (mm) Ø110 or Ø200 350L
changer (option) Max. Tool weight (kgs) 15
Tool to tool (sec.) 8
Coolant tank volume (L) 26
Coolant & Hydraulic tank volume (L) 120
lubrication 6
Lubrication tank volume (L)
1080 800 880 980 1080 980 1080
Positioning (mm) 0.025
Accuracy Repeatability (mm) 0.02
Roundness (mm) 0.02/Ø300
Power required (kva) 60
Miscellaneous Pneumatic required (kg/cm²) 5
Machine net weight (kgs) 44000 49000 53000 56000 70000 75000
