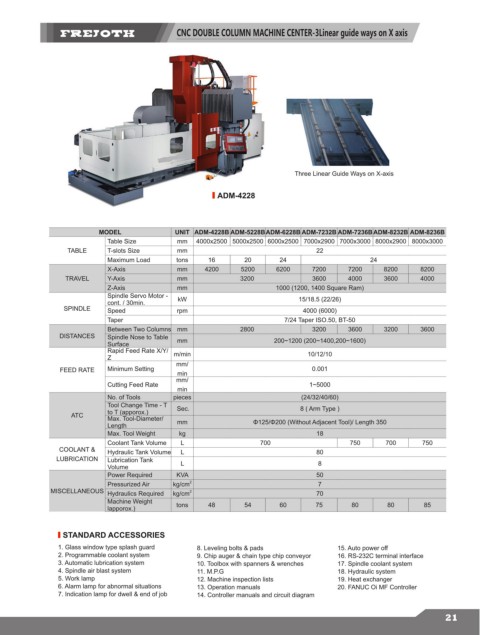

CNC DOUBLE COLUMN MACHINE CENTER-3Linear guide ways on X axis

Three Linear Guide Ways on X-axis

ADM-4228

MODEL UNIT ADM-4228B ADM-5228BADM-6228B ADM-7232B ADM-7236BADM-8232B ADM-8236B
Table Size mm 4000x2500 5000x2500 6000x2500 7000x2900 7000x3000 8000x2900 8000x3000
TABLE T-slots Size mm 22
Maximum Load tons 16 20 24 24
X-Axis mm 4200 5200 6200 7200 7200 8200 8200
TRAVEL Y-Axis mm 3200 3600 4000 3600 4000
Z-Axis mm 1000 (1200, 1400 Square Ram)
Spindle Servo Motor - kW 15/18.5 (22/26)
cont. / 30min.
SPINDLE Speed rpm 4000 (6000)
Taper 7/24 Taper ISO.50, BT-50
Between Two Columns mm 2800 3200 3600 3200 3600
DISTANCES Spindle Nose to Table
Surface mm 200~1200 (200~1400,200~1600)
Rapid Feed Rate X/Y/
Z m/min 10/12/10
mm/
FEED RATE Minimum Setting min 0.001
mm/
Cutting Feed Rate 1~5000
min
No. of Tools pieces (24/32/40/60)
Tool Change Time - T Sec. 8 ( Arm Type )
ATC to T (apporox.)
Max. Tool-Diameter/
Length mm Φ125/Φ200 (Without Adjacent Tool)/ Length 350
Max. Tool Weight kg 18
Coolant Tank Volume L 700 750 700 750
COOLANT & Hydraulic Tank Volume L 80
LUBRICATION Lubrication Tank L 8
Volume
Power Required KVA 50
Pressurized Air kg/cm 2 7
MISCELLANEOUS Hydraulics Required kg/cm 2 70
Machine Weight tons 48 54 60 75 80 80 85
lapporox.)

STANDARD ACCESSORIES

1. Glass window type splash guard 8. Leveling bolts & pads 15. Auto power off
2. Programmable coolant system 9. Chip auger & chain type chip conveyor 16. RS-232C terminal interface
3. Automatic lubrication system 10. Toolbox with spanners & wrenches 17. Spindle coolant system
4. Spindle air blast system 11. M.P.G 18. Hydraulic system
5. Work lamp 12. Machine inspection lists 19. Heat exchanger
6. Alarm lamp for abnormal situations 13. Operation manuals 20. FANUC Oi MF Controller
7. Indication lamp for dwell & end of job 14. Controller manuals and circuit diagram
