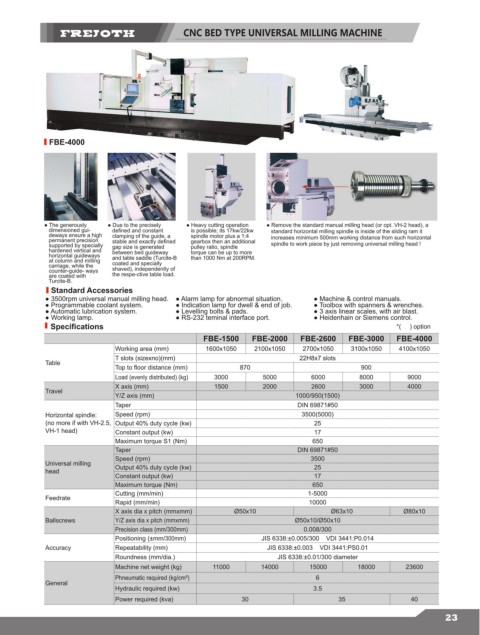

CNC BED TYPE UNIVERSAL MILLING MACHINE

FBE-4000

● The generously ● Due to the precisely ● Heavy cutting operation ● Remove the standard manual milling head (or opt. VH-2 head), a
dimensioned gui- defined and constant is possible; its 17kw/22kw standard horizontal milling spindle is inside of the sliding ram it
deways ensure a high clamping of the guide, a spindle motor plus a 1:4 increases minimum 500mm working distance from such horizontal
permanent precision stable and exactly defined gearbox then an additional
supported by specially gap size is generated pulley ratio, spindle spindle to work piece by just removing universal milling head !
hardened vertical and between bed guideway torque can be up to more
horizontal guideways and table saddle (Turcite-B than 1000 Nm at 200RPM.
at column and milling coated and specially
carriage, while the
counter-guide- ways shaved), independently of
are coated with the respe-ctive table load.
Turcite-B.
Standard Accessories
● 3500rpm universal manual milling head. ● Alarm lamp for abnormal situation. ● Machine & control manuals.
● Programmable coolant system. ● Indication lamp for dwell & end of job. ● Toolbox with spanners & wrenches.
● Automatic lubrication system. ● Levelling bolts & pads. ● 3 axis linear scales, with air blast.
● Working lamp. ● RS-232 teminal interface port. ● Heidenhain or Siemens control.
Specifications *( ) option
FBE-1500 FBE-2000 FBE-2600 FBE-3000 FBE-4000
Working area (mm) 1600x1050 2100x1050 2700x1050 3100x1050 4100x1050
T slots (sizexno)(mm) 22H8x7 slots
Table
Top to floor distance (mm) 870 900
Load (evenly distributed) (kg) 3000 5000 6000 8000 9000
X axis (mm) 1500 2000 2600 3000 4000
Travel
Y/Z axis (mm) 1000/950(1500)
Taper DIN 69871#50
Horizontal spindle: Speed (rpm) 3500(5000)
(no more if with VH-2.5, Output 40% duty cycle (kw) 25
VH-1 head) Constant output (kw) 17
Maximum torque S1 (Nm) 650
Taper DIN 69871#50
Speed (rpm) 3500
Universal milling Output 40% duty cycle (kw) 25
head
Constant output (kw) 17
Maximum torque (Nm) 650
Cutting (mm/min) 1-5000
Feedrate
Rapid (mm/min) 10000
X axis dia x pitch (mmxmm) Ø50x10 Ø63x10 Ø80x10
Ballscrews Y/Z axis dia x pitch (mmxmm) Ø50x10/Ø50x10
Precision class (mm/300mm) 0.008/300
Positioning (±mm/300mm) JIS 6338:±0.005/300 VDI 3441:P0.014
Accuracy Repeatability (mm) JIS 6338:±0.003 VDI 3441:PS0.01
Roundness (mm/dia.) JIS 6338:±0.01/300 diameter
Machine net weight (kg) 11000 14000 15000 18000 23600
Phneumatic required (kg/cm²) 6
General
Hydraulic required (kw) 3.5
Power required (kva) 30 35 40
