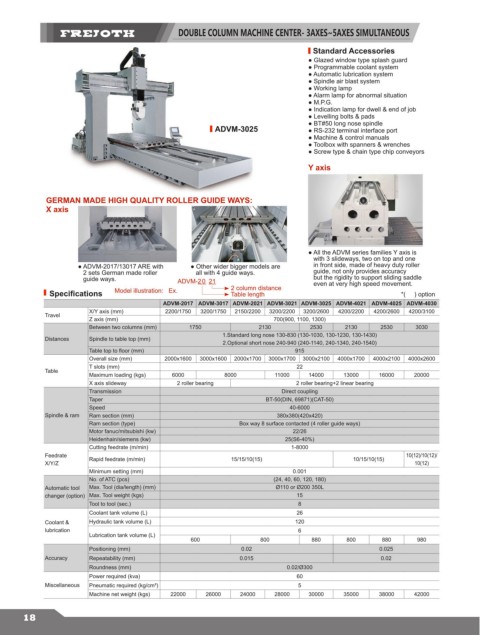

DOUBLE COLUMN MACHINE CENTER- 3AXES~5AXES SIMULTANEOUS

Standard Accessories
● Glazed window type splash guard
● Programmable coolant system
● Automatic lubrication system
● Spindle air blast system
● Working lamp
● Alarm lamp for abnormal situation
● M.P.G.
● Indication lamp for dwell & end of job
● Levelling bolts & pads
● BT#50 long nose spindle
ADVM-3025 ● RS-232 terminal interface port
● Machine & control manuals
● Toolbox with spanners & wrenches
● Screw type & chain type chip conveyors
Y axis

GERMAN MADE HIGH QUALITY ROLLER GUIDE WAYS:
X axis

● All the ADVM series families Y axis is
with 3 slideways, two on top and one
● ADVM-2017/13017 ARE with ● Other wider bigger models are in front side, made of heavy duty roller
2 sets German made roller all with 4 guide ways. guide, not only provides accuracy
guide ways. ADVM-20 21 but the rigidity to support sliding saddle
even at very high speed movement.
Specifications Model illustration: Ex. 2 column distance *( ) option
Table length
ADVM-2017 ADVM-3017 ADVM-2021 ADVM-3021 ADVM-3025 ADVM-4021 ADVM-4025 ADVM-4030
X/Y axis (mm) 2200/1750 3200/1750 2150/2200 3200/2200 3200/2600 4200/2200 4200/2600 4200/3100
Travel
Z axis (mm) 700(900, 1100, 1300)
Between two columns (mm) 1750 2130 2530 2130 2530 3030
1.Standard long nose 130-830 (130-1030, 130-1230, 130-1430)
Distances Spindle to table top (mm)
2.Optional short nose 240-940 (240-1140, 240-1340, 240-1540)
Table top to floor (mm) 915
Overall size (mm) 2000x1600 3000x1600 2000x1700 3000x1700 3000x2100 4000x1700 4000x2100 4000x2600
T slots (mm) 22
Table
Maximum loading (kgs) 6000 8000 11000 14000 13000 16000 20000
X axis slideway 2 roller bearing 2 roller bearing+2 linear bearing
Transmission Direct coupling
Taper BT-50(DIN, 69871)(CAT-50)
Speed 40-6000
Spindle & ram Ram section (mm) 380x380(420x420)
Ram section (type) Box way 8 surface contacted (4 roller guide ways)
Motor fanuc/mitsubishi (kw) 22/26
Heidenhain/siemens (kw) 25(S6-40%)
Cutting feedrate (m/min) 1-8000
Feedrate Rapid feedrate (m/min) 15/15/10(15) 10/15/10(15) 10(12)/10(12)/
X/Y/Z 10(12)
Minimum setting (mm) 0.001
No. of ATC (pcs) (24, 40, 60, 120, 180)
Automatic tool Max. Tool (dia/length) (mm) Ø110 or Ø200 350L
changer (option) Max. Tool weight (kgs) 15
Tool to tool (sec.) 8
Coolant tank volume (L) 26
Coolant & Hydraulic tank volume (L) 120
lubrication 6
Lubrication tank volume (L)
600 800 880 800 880 980
Positioning (mm) 0.02 0.025
Accuracy Repeatability (mm) 0.015 0.02
Roundness (mm) 0.02/Ø300
Power required (kva) 60
Miscellaneous Pneumatic required (kg/cm²) 5
Machine net weight (kgs) 22000 26000 24000 28000 30000 35000 38000 42000
