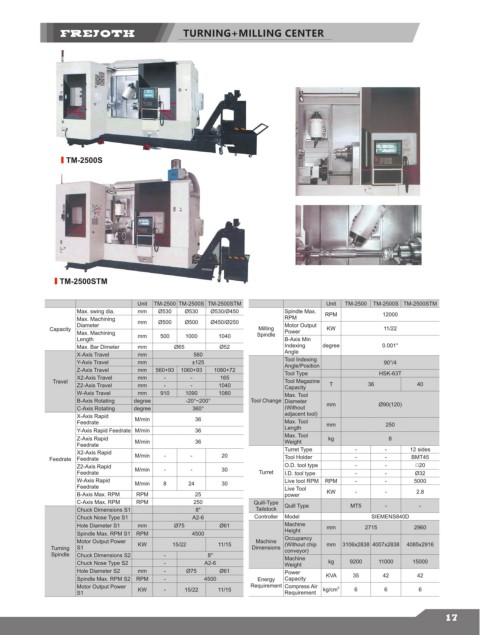

TURNING+MILLING CENTER

TM-2500S

TM-2500STM

Unit TM-2500 TM-2500S TM-2500STM Unit TM-2500 TM-2500S TM-2500STM
Max. swing dia. mm Ø530 Ø530 Ø530/Ø450 Spindle Max. RPM 12000
Max. Machining mm Ø500 Ø500 Ø450/Ø250 RPM
Capacity Diameter Milling Motor Output KW 11/22
Max. Machining mm 500 1000 1040 Spindle Power
Length B-Axis Min
Max. Bar Dimeter mm Ø65 Ø52 Indexing degree 0.001°
X-Axis Travel mm 560 Angle
Y-Axis Travel mm ±125 Tool Indexing 90°/4
Angle/Position
Z-Axis Travel mm 560+93 1060+93 1080+72 Tool Type HSK-63T
X2-Axis Travel mm - - 165
Travel Tool Magazine
Z2-Axis Travel mm - - 1040 Capacity T 36 40
W-Axis Travel mm 910 1090 1080 Max. Tool
B-Axis Rotating degree -20°~200° Tool Change Diameter mm Ø90(120)
C-Axis Rotating degree 360° (Without
X-Axis Rapid M/min 36 adjacent tool)
Feedrate Max. Tool mm 250
Y-Axis Rapid Feedrate M/min 36 Length
Z-Axis Rapid M/min 36 Max. Tool kg 8
Weight
Feedrate
X2-Axis Rapid Turret Type - - 12 sides
Feedrate Feedrate M/min - - 20 Tool Holder - - BMT45
Z2-Axis Rapid M/min - - 30 O.D. tool type - - □20
Feedrate Turret I.D. tool type - - Ø32
W-Axis Rapid M/min 8 24 30 Live tool RPM RPM - - 5000
Feedrate Live Tool
B-Axis Max. RPM RPM 25 power KW - - 2.8
C-Axis Max. RPM RPM 250 Quill-Type Quill Type MT5 - -
Chuck Dimensions S1 8" Tailstock
Chuck Nose Type S1 A2-6 Controller Model SIEMENS840D
Hole Diameter S1 mm Ø75 Ø61 Machine mm 2715 2960
Spindle Max. RPM S1 RPM 4500 Height
Motor Output Power Machine Occupancy
Turning S1 KW 15/22 11/15 Dimensions (Without chip mm 3106x2838 4007x2838 4085x2916
conveyor)
Spindle Chuck Dimensions S2 - 8" Machine
Chuck Nose Type S2 - A2-6 Weight kg 9200 11000 15000
Hole Diameter S2 mm - Ø75 Ø61 Power
Spindle Max. RPM S2 RPM - 4500 Energy Capacity KVA 35 42 42
Motor Output Power KW - 15/22 11/15 Requirement Compress Air kg/cm 3 6 6 6
S1 Requirement
