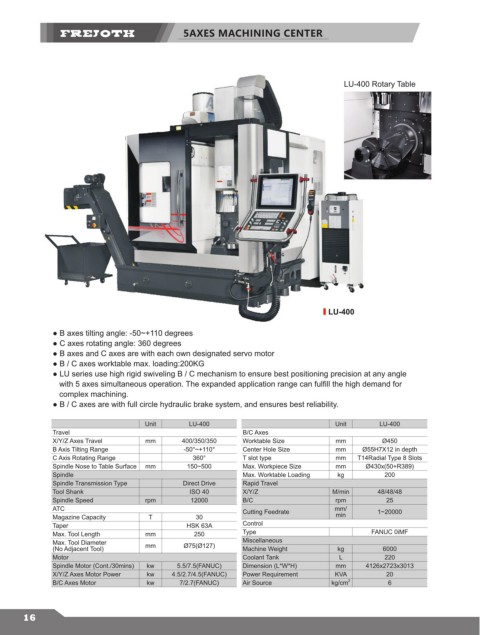

5AXES MACHINING CENTER

LU-400 Rotary Table

LU-400

● B axes tilting angle: -50~+110 degrees
● C axes rotating angle: 360 degrees
● B axes and C axes are with each own designated servo motor
● B / C axes worktable max. loading:200KG
● LU series use high rigid swiveling B / C mechanism to ensure best positioning precision at any angle
with 5 axes simultaneous operation. The expanded application range can fulfill the high demand for
complex machining.
● B / C axes are with full circle hydraulic brake system, and ensures best reliability.

Unit LU-400 Unit LU-400
Travel B/C Axes
X/Y/Z Axes Travel mm 400/350/350 Worktable Size mm Ø450
B Axis Tilting Range -50°~+110° Center Hole Size mm Ø55H7X12 in depth
C Axis Rotating Range 360° T slot type mm T14Radial Type 8 Slots
Spindle Nose to Table Surface mm 150~500 Max. Workpiece Size mm Ø430x(50+R389)
Spindle Max. Worktable Loading kg 200
Spindle Transmission Type Direct Drive Rapid Travel
Tool Shank ISO 40 X/Y/Z M/min 48/48/48
Spindle Speed rpm 12000 B/C rpm 25
ATC Cutting Feedrate mm/ 1~20000
Magazine Capacity T 30 min
Taper HSK 63A Control
Max. Tool Length mm 250 Type FANUC 0iMF
Max. Tool Diameter mm Ø75(Ø127) Miscellaneous
(No Adjacent Tool) Machine Weight kg 6000
Motor Coolant Tank L 220
Spindle Motor (Cont./30mins) kw 5.5/7.5(FANUC) Dimension (L*W*H) mm 4126x2723x3013
X/Y/Z Axes Motor Power kw 4.5/2.7/4.5(FANUC) Power Requirement KVA 20
B/C Axes Motor kw 7/2.7(FANUC) Air Source kg/cm 2 6
