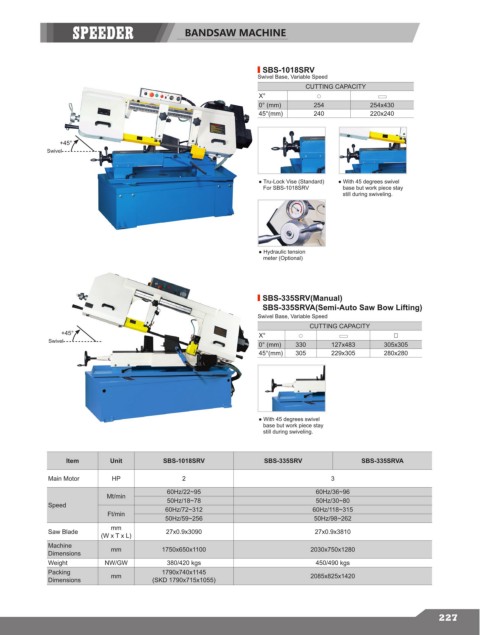

BANDSAW MACHINE
SBS-1018SRV
Swivel Base, Variable Speed
CUTTING CAPACITY
X°
0° (mm) 254 254x430
45°(mm) 240 220x240
+45°
Swivel
● Tru-Lock Vise (Standard) ● With 45 degrees swivel
For SBS-1018SRV base but work piece stay
still during swiveling.
● Hydraulic tension
meter (Optional)
SBS-335SRV(Manual)
SBS-335SRVA(Semi-Auto Saw Bow Lifting)
Swivel Base, Variable Speed
CUTTING CAPACITY
+45° X°
Swivel
0° (mm) 330 127x483 305x305
45°(mm) 305 229x305 280x280
● With 45 degrees swivel
base but work piece stay
still during swiveling.
ltem Unit SBS-1018SRV SBS-335SRV SBS-335SRVA
Main Motor HP 2 3
60Hz/22~95 60Hz/36~96
Mt/min
50Hz/30~80
50Hz/18~78
Speed 60Hz/72~312 60Hz/118~315
Ft/min
50Hz/59~256 50Hz/98~262
mm
Saw Blade 27x0.9x3090 27x0.9x3810
(W x T x L)
Machine mm 1750x650x1100 2030x750x1280
Dimensions
Weight NW/GW 380/420 kgs 450/490 kgs
Packing mm 1790x740x1145 2085x825x1420
Dimensions (SKD 1790x715x1055)
