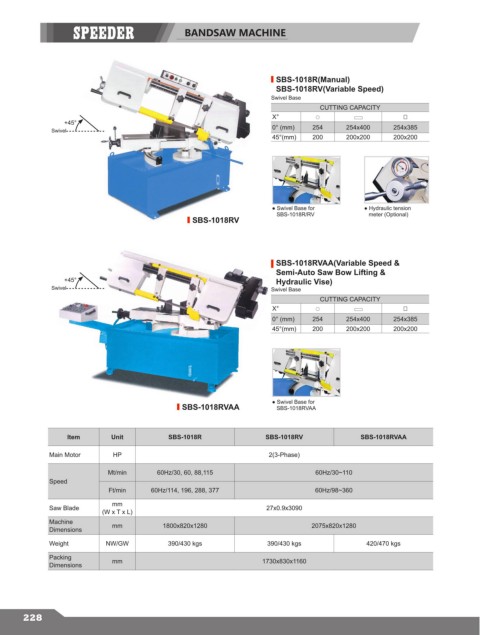

BANDSAW MACHINE

SBS-1018R(Manual)
SBS-1018RV(Variable Speed)
Swivel Base
CUTTING CAPACITY
X°
+45°
Swivel 0° (mm) 254 254x400 254x385
45°(mm) 200 200x200 200x200

● Swivel Base for ● Hydraulic tension
SBS-1018R/RV meter (Optional)
SBS-1018RV

SBS-1018RVAA(Variable Speed &
Semi-Auto Saw Bow Lifting &
+45° Hydraulic Vise)
Swivel Swivel Base
CUTTING CAPACITY
X°
0° (mm) 254 254x400 254x385
45°(mm) 200 200x200 200x200

● Swivel Base for
SBS-1018RVAA SBS-1018RVAA

ltem Unit SBS-1018R SBS-1018RV SBS-1018RVAA

Main Motor HP 2(3-Phase)

Mt/min 60Hz/30, 60, 88,115 60Hz/30~110
Speed
Ft/min 60Hz/114, 196, 288, 377 60Hz/98~360
mm
Saw Blade 27x0.9x3090
(W x T x L)
Machine mm 1800x820x1280 2075x820x1280
Dimensions
Weight NW/GW 390/430 kgs 390/430 kgs 420/470 kgs
Packing mm 1730x830x1160
Dimensions
