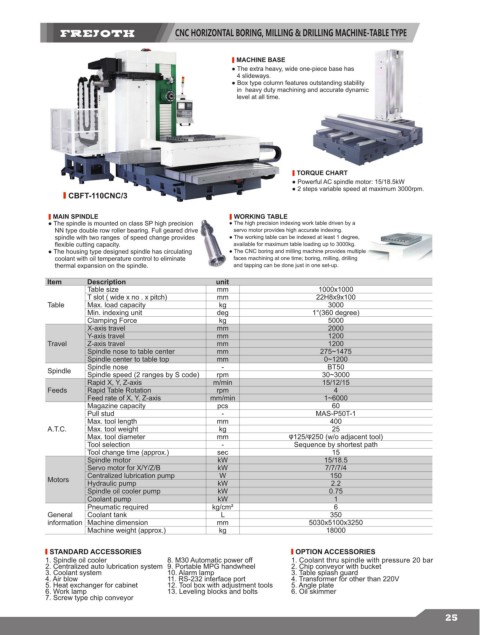

CNC HORIZONTAL BORING, MILLING & DRILLING MACHINE-TABLE TYPE

MACHINE BASE
● The extra heavy, wide one-piece base has
4 slideways.
● Box type column features outstanding stability
in heavy duty machining and accurate dynamic
level at all time.

TORQUE CHART
● Powerful AC spindle motor: 15/18.5kW
● 2 steps variable speed at maximum 3000rpm.
CBFT-110CNC/3

MAIN SPINDLE WORKING TABLE
● The spindle is mounted on class SP high precision ● The high precision indexing work table driven by a
NN type double row roller bearing. Full geared drive servo motor provides high accurate indexing.
spindle with two ranges of speed change provides ● The working table can be indexed at least 1 degree,
flexible cutting capacity. available for maximum table loading up to 3000kg.
● The housing type designed spindle has circulating ● The CNC boring and milling machine provides multiple
coolant with oil temperature control to eliminate faces machining at one time; boring, milling, drilling
thermal expansion on the spindle. and tapping can be done just in one set-up.
Item Description unit
Table size mm 1000x1000
T slot ( wide x no . x pitch) mm 22H8x9x100
Table Max. load capacity kg 3000
Min. indexing unit deg 1°(360 degree)
Clamping Force kg 5000
X-axis travel mm 2000
Y-axis travel mm 1200
Travel Z-axis travel mm 1200
Spindle nose to table center mm 275~1475
Spindle center to table top mm 0~1200
-
BT50
Spindle Spindle nose rpm 30~3000
Spindle speed (2 ranges by S code)
Rapid X, Y, Z-axis m/min 15/12/15
Feeds Rapid Table Rotation rpm 4
Feed rate of X, Y, Z-axis mm/min 1~6000
Magazine capacity pcs 60
Pull stud - MAS-P50T-1
Max. tool length mm 400
A.T.C. Max. tool weight kg 25
Max. tool diameter mm φ125/φ250 (w/o adjacent tool)
Tool selection - Sequence by shortest path
Tool change time (approx.) sec 15
Spindle motor kW 15/18.5
Servo motor for X/Y/Z/B kW 7/7/7/4
W
Motors Centralized lubrication pump kW 150
Hydraulic pump
2.2
Spindle oil cooler pump kW 0.75
Coolant pump kW 1
Pneumatic required kg/cm² 6
General Coolant tank L 350
information Machine dimension mm 5030x5100x3250
Machine weight (approx.) kg 18000

STANDARD ACCESSORIES OPTION ACCESSORIES
1. Spindle oil cooler 8. M30 Automatic power off 1. Coolant thru spindle with pressure 20 bar
2. Centralized auto lubrication system 9. Portable MPG handwheel 2. Chip conveyor with bucket
3. Coolant system 10. Alarm lamp 3. Table splash guard
4. Air blow 11. RS-232 interface port 4. Transformer for other than 220V
5. Heat exchanger for cabinet 12. Tool box with adjustment tools 5. Angle plate
6. Work lamp 13. Leveling blocks and bolts 6. Oil skimmer
7. Screw type chip conveyor
