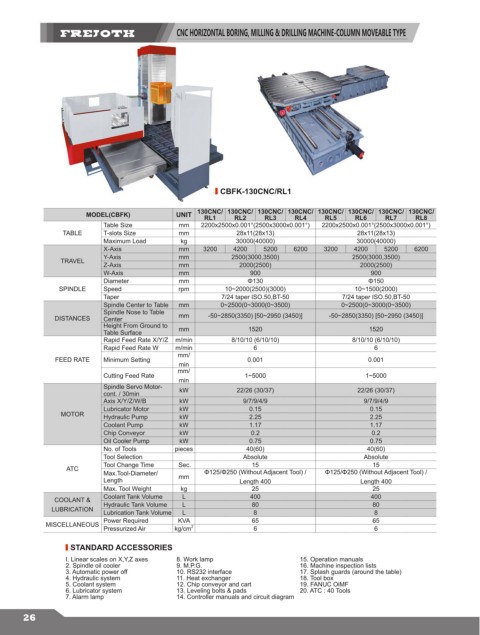

CNC HORIZONTAL BORING, MILLING & DRILLING MACHINE-COLUMN MOVEABLE TYPE

CBFK-130CNC/RL1

MODEL(CBFK) UNIT 130CNC/ 130CNC/ 130CNC/ 130CNC/ 130CNC/ 130CNC/ 130CNC/ 130CNC/
RL2
RL3
RL8
RL1
RL4
RL5
RL6
RL7
Table Size mm 2200x2500x0.001°(2500x3000x0.001°) 2200x2500x0.001°(2500x3000x0.001°)
TABLE T-slots Size mm 28x11(28x13) 28x11(28x13)
Maximum Load kg 30000(40000) 30000(40000)
X-Axis mm 3200 4200 5200 6200 3200 4200 5200 6200
Y-Axis mm 2500(3000,3500) 2500(3000,3500)
TRAVEL
Z-Axis mm 2000(2500) 2000(2500)
W-Axis mm 900 900
Diameter mm Φ130 Φ150
SPINDLE Speed rpm 10~2000(2500)(3000) 10~1500(2000)
Taper 7/24 taper ISO.50,BT-50 7/24 taper ISO.50,BT-50
Spindle Center to Table mm 0~2500(0~3000(0~3500) 0~2500(0~3000(0~3500)
Spindle Nose to Table
DISTANCES Center mm -50~2850(3350) [50~2950 (3450)] -50~2850(3350) [50~2950 (3450)]
Height From Ground to
Table Surface mm 1520 1520
Rapid Feed Rate X/Y/Z m/min 8/10/10 (6/10/10) 8/10/10 (6/10/10)
Rapid Feed Rate W m/min 6 6
mm/
FEED RATE Minimum Setting 0.001 0.001
min
mm/
Cutting Feed Rate 1~5000 1~5000
min
Spindle Servo Motor-
cont. / 30min kW 22/26 (30/37) 22/26 (30/37)
Axis X/Y/Z/W/B kW 9/7/9/4/9 9/7/9/4/9
Lubricator Motor kW 0.15 0.15
MOTOR Hydraulic Pump kW 2.25 2.25
Coolant Pump kW 1.17 1.17
Chip Conveyor kW 0.2 0.2
Oil Cooler Pump kW 0.75 0.75
No. of Tools pieces 40(60) 40(60)
Tool Selection Absolute Absolute
Tool Change Time Sec. 15 15
ATC
Max.Tool-Diameter/ mm Φ125/Φ250 (Without Adjacent Tool) / Φ125/Φ250 (Without Adjacent Tool) /
Length Length 400 Length 400
Max. Tool Weight kg 25 25
COOLANT & Coolant Tank Volume L 400 400
LUBRICATION Hydraulic Tank Volume L 80 80
Lubrication Tank Volume L 8 8
Power Required KVA 65 65
MISCELLANEOUS 2
Pressurized Air kg/cm 6 6
STANDARD ACCESSORIES
I. Linear scales on X,Y,Z axes 8. Work lamp 15. Operation manuals
2. Spindle oil cooler 9. M.P.G. 16. Machine inspection lists
3. Automatic power off 10. RS232 interface 17. Splash guards (around the table)
4. Hydraulic system 11. Heat exchanger 18. Tool box
5. Coolant system 12. Chip conveyor and cart 19. FANUC OiMF
6. Lubricator system 13. Leveling bolts & pads 20. ATC : 40 Tools
7. Alarm lamp 14. Controller manuals and circuit diagram
