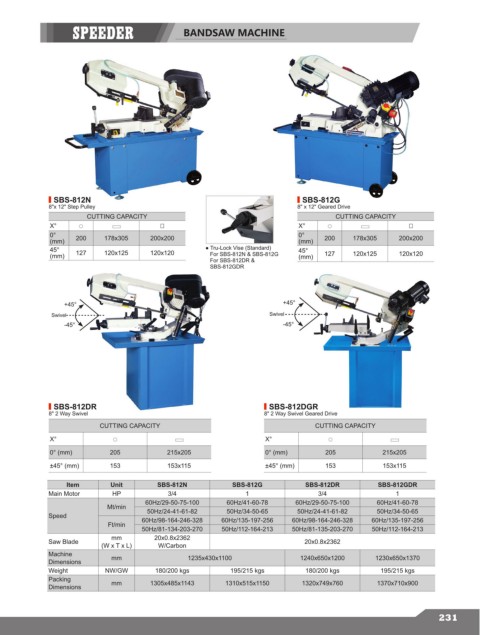

BANDSAW MACHINE

SBS-812N SBS-812G
8"x 12" Step Pulley 8" x 12" Geared Drive
CUTTING CAPACITY CUTTING CAPACITY
X° X°
0° 200 178x305 200x200 0° 200 178x305 200x200
(mm) (mm)
45° 127 120x125 120x120 ● Tru-Lock Vise (Standard) 45°
(mm) For SBS-812N & SBS-812G (mm) 127 120x125 120x120
For SBS-812DR &
SBS-812GDR

+45° +45°
Swivel Swivel
-45° -45°

SBS-812DR SBS-812DGR
9"x16" Variable Speed 8" 2 Way Swivel 8" 2 Way Swivel Geared Drive
CUTTING CAPACITY CUTTING CAPACITY
X° X°

0° (mm) 205 215x205 0° (mm) 205 215x205
±45° (mm) 153 153x115 ±45° (mm) 153 153x115

ltem Unit SBS-812N SBS-812G SBS-812DR SBS-812GDR
Main Motor HP 3/4 1 3/4 1
60Hz/29-50-75-100 60Hz/41-60-78 60Hz/29-50-75-100 60Hz/41-60-78
Mt/min
50Hz/34-50-65
50Hz/24-41-61-82
50Hz/34-50-65
50Hz/24-41-61-82
Speed 60Hz/98-164-246-328 60Hz/135-197-256 60Hz/98-164-246-328 60Hz/135-197-256
Ft/min
50Hz/81-134-203-270 50Hz/112-164-213 50Hz/81-135-203-270 50Hz/112-164-213
mm 20x0.8x2362
Saw Blade 20x0.8x2362
(W x T x L) W/Carbon
Machine mm 1235x430x1100 1240x650x1200 1230x650x1370
Dimensions
Weight NW/GW 180/200 kgs 195/215 kgs 180/200 kgs 195/215 kgs
Packing mm 1305x485x1143 1310x515x1150 1320x749x760 1370x710x900
Dimensions
