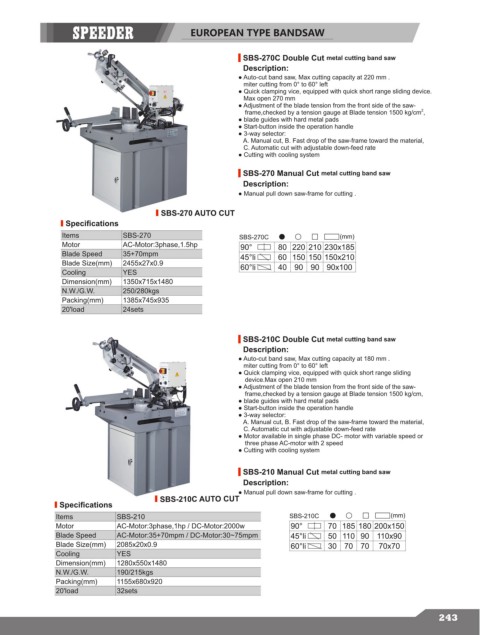

EUROPEAN TYPE BANDSAW

SBS-270C Double Cut metal cutting band saw
Description:
● Auto-cut band saw, Max cutting capacity at 220 mm .
miter cutting from 0° to 60° left
● Quick clamping vice, equipped with quick short range sliding device.
Max open 270 mm
● Adjustment of the blade tension from the front side of the saw-
2
frame,checked by a tension gauge at Blade tension 1500 kg/cm ,
● blade guides with hard metal pads
● Start-button inside the operation handle
● 3-way selector:
A. Manual cut, B. Fast drop of the saw-frame toward the material,
C. Automatic cut with adjustable down-feed rate
● Cutting with cooling system

SBS-270 Manual Cut metal cutting band saw
Description:
● Manual pull down saw-frame for cutting .

SBS-270 AUTO CUT
Specifications
Items SBS-270 SBS-270C (mm)
Motor AC-Motor:3phase,1.5hp 90° 80 220 210 230x185
Blade Speed 35+70mpm 45°li 60 150 150 150x210
Blade Size(mm) 2455x27x0.9 60°li 40 90 90 90x100
Cooling YES
Dimension(mm) 1350x715x1480
N.W./G.W. 250/280kgs
Packing(mm) 1385x745x935
20'load 24sets

SBS-210C Double Cut metal cutting band saw
Description:
● Auto-cut band saw, Max cutting capacity at 180 mm .
miter cutting from 0° to 60° left
● Quick clamping vice, equipped with quick short range sliding
device.Max open 210 mm
● Adjustment of the blade tension from the front side of the saw-
frame,checked by a tension gauge at Blade tension 1500 kg/cm,
● blade guides with hard metal pads
● Start-button inside the operation handle
● 3-way selector:
A. Manual cut, B. Fast drop of the saw-frame toward the material,
C. Automatic cut with adjustable down-feed rate
● Motor available in single phase DC- motor with variable speed or
three phase AC-motor with 2 speed
● Cutting with cooling system

SBS-210 Manual Cut metal cutting band saw
Description:
● Manual pull down saw-frame for cutting .
SBS-210C AUTO CUT
Specifications
Items SBS-210 SBS-210C (mm)
Motor AC-Motor:3phase,1hp / DC-Motor:2000w 90° 70 185 180 200x150
Blade Speed AC-Motor:35+70mpm / DC-Motor:30~75mpm 45°li 50 110 90 110x90
Blade Size(mm) 2085x20x0.9 60°li 30 70 70 70x70
Cooling YES
Dimension(mm) 1280x550x1480
N.W./G.W. 190/215kgs
Packing(mm) 1155x680x920
20'load 32sets
