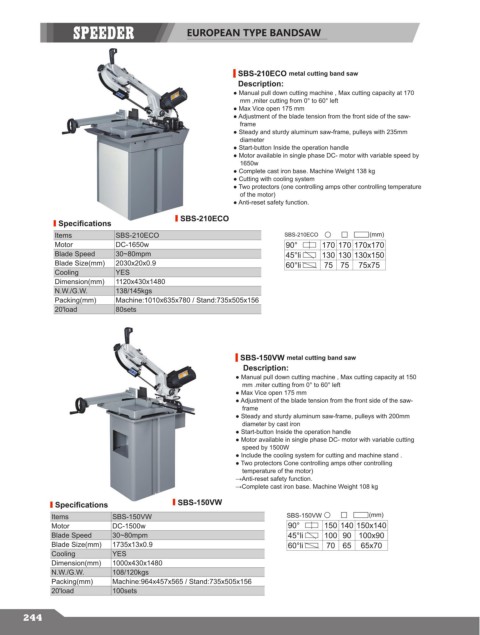

EUROPEAN TYPE BANDSAW

SBS-210ECO metal cutting band saw
Description:
● Manual pull down cutting machine , Max cutting capacity at 170
mm ,miter cutting from 0° to 60° left
● Max Vice open 175 mm
● Adjustment of the blade tension from the front side of the saw-
frame
● Steady and sturdy aluminum saw-frame, pulleys with 235mm
diameter
● Start-button Inside the operation handle
● Motor available in single phase DC- motor with variable speed by
1650w
● Complete cast iron base. Machine Welght 138 kg
● Cutting with cooling system
● Two protectors (one controlling amps other controlling temperature
of the motor)
● Anti-reset safety function.
SBS-210ECO
Specifications
Items SBS-210ECO SBS-210ECO (mm)
Motor DC-1650w 90° 170 170 170x170
Blade Speed 30~80mpm 45°li 130 130 130x150
Blade Size(mm) 2030x20x0.9 60°li 75 75 75x75
Cooling YES
Dimension(mm) 1120x430x1480
N.W./G.W. 138/145kgs
Packing(mm) Machine:1010x635x780 / Stand:735x505x156
20'load 80sets

SBS-150VW metal cutting band saw
Description:
● Manual pull down cutting machine , Max cutting capacity at 150
mm .miter cutting from 0° to 60° left
● Max Vice open 175 mm
● Adjustment of the blade tension from the front side of the saw-
frame
● Steady and sturdy aluminum saw-frame, pulleys with 200mm
diameter by cast iron
● Start-button Inside the operation handle
● Motor available in single phase DC- motor with variable cutting
speed by 1500W
● Include the cooling system for cutting and machine stand .
● Two protectors Cone controlling amps other controlling
temperature of the motor)
→Anti-reset safety function.
→Complete cast iron base. Machine Weight 108 kg

Specifications SBS-150VW
Items SBS-150VW SBS-150VW (mm)
Motor DC-1500w 90° 150 140 150x140
Blade Speed 30~80mpm 45°li 100 90 100x90
Blade Size(mm) 1735x13x0.9 60°li 70 65 65x70
Cooling YES
Dimension(mm) 1000x430x1480
N.W./G.W. 108/120kgs
Packing(mm) Machine:964x457x565 / Stand:735x505x156
20'load 100sets
