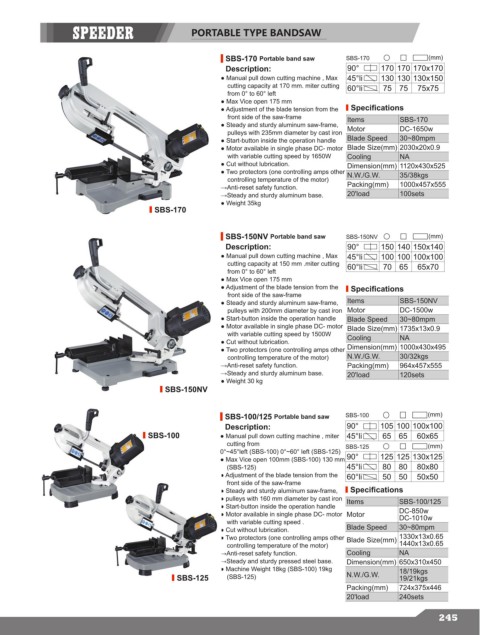

PORTABLE TYPE BANDSAW

SBS-170 Portable band saw SBS-170 (mm)
Description: 90° 170 170 170x170
● Manual pull down cutting machine , Max 45°li 130 130 130x150
cutting capacity at 170 mm. miter cutting 60°li 75 75 75x75
from 0° to 60° left
● Max Vice open 175 mm
● Adjustment of the blade tension from the Specifications
front side of the saw-frame Items SBS-170
● Steady and sturdy aluminum saw-frame, Motor DC-1650w
pulleys with 235mm diameter by cast iron
● Start-button inside the operation handle Blade Speed 30~80mpm
● Motor available in single phase DC- motor Blade Size(mm) 2030x20x0.9
with variable cutting speed by 1650W Cooling NA
● Cut without lubrication. Dimension(mm) 1120x430x525
● Two protectors (one controlling amps other N.W./G.W. 35/38kgs
controlling temperature of the motor)
→Anti-reset safety function. Packing(mm) 1000x457x555
→Steady and sturdy aluminum base. 20'load 100sets
● Weight 35kg
SBS-170

SBS-150NV Portable band saw SBS-150NV (mm)
Description: 90° 150 140 150x140
● Manual pull down cutting machine , Max 45°li 100 100 100x100
cutting capacity at 150 mm .miter cutting 60°li 70 65 65x70
from 0° to 60° left
● Max Vice open 175 mm
● Adjustment of the blade tension from the Specifications
front side of the saw-frame
● Steady and sturdy aluminum saw-frame, Items SBS-150NV
pulleys with 200mm diameter by cast iron Motor DC-1500w
● Start-button inside the operation handle Blade Speed 30~80mpm
● Motor available in single phase DC- motor Blade Size(mm) 1735x13x0.9
with variable cutting speed by 1500W Cooling NA
● Cut without lubrication.
● Two protectors (one controlling amps other Dimension(mm) 1000x430x495
controlling temperature of the motor) N.W./G.W. 30/32kgs
→Anti-reset safety function. Packing(mm) 964x457x555
→Steady and sturdy aluminum base. 20'load 120sets
● Weight 30 kg
SBS-150NV

SBS-100/125 Portable band saw SBS-100 (mm)
Description: 90° 105 100 100x100
SBS-100 ● Manual pull down cutting machine , miter 45°li 65 65 60x65
cutting from SBS-125 (mm)
0°~45°left (SBS-100) 0°~60° left (SBS-125)
● Max Vice open 100mm (SBS-100) 130 mm 90° 125 125 130x125
(SBS-125) 45°li 80 80 80x80
● Adjustment of the blade tension from the 60°li 50 50 50x50
front side of the saw-frame
● Steady and sturdy aluminum saw-frame, Specifications
● pulleys with 160 mm diameter by cast iron Items SBS-100/125
● Start-button inside the operation handle
● Motor available in single phase DC- motor Motor DC-850w
DC-1010w
with variable cutting speed .
● Cut without lubrication. Blade Speed 30~80mpm
● Two protectors (one controlling amps other Blade Size(mm) 1330x13x0.65
controlling temperature of the motor) 1440x13x0.65
→Anti-reset safety function. Cooling NA
→Steady and sturdy pressed steel base. Dimension(mm) 650x310x450
● Machine Weight 18kg (SBS-100) 19kg 18/19kgs
SBS-125 (SBS-125) N.W./G.W. 19/21kgs
Packing(mm) 724x375x446
20'load 240sets
