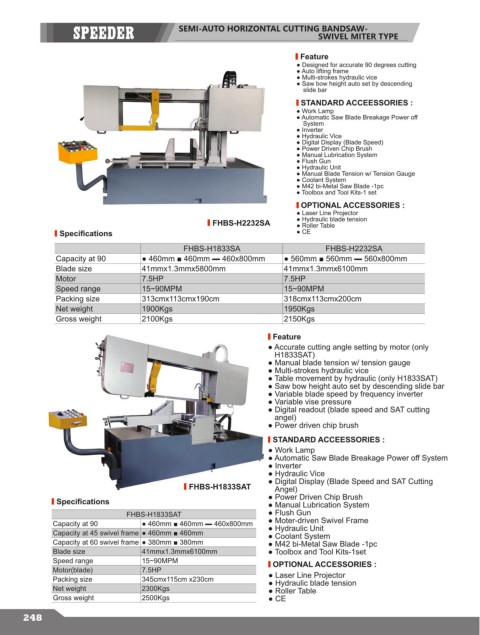

SEMI-AUTO HORIZONTAL CUTTING BANDSAW-
SWIVEL MITER TYPE

Feature
● Designed for accurate 90 degrees cutting
● Auto lifting frame
● Multi-strokes hydraulic vice
● Saw bow height auto set by descending
slide bar
STANDARD ACCEESSORIES :
● Work Lamp
● Automatic Saw Blade Breakage Power off
System
● Inverter
● Hydraulic Vice
● Digital Display (Blade Speed)
● Power Driven Chip Brush
● Manual Lubrication System
● Flush Gun
● Hydraulic Unit
● Manual Blade Tension w/ Tension Gauge
● Coolant System
● M42 bi-Metal Saw Blade -1pc
● Toolbox and Tool Kits-1 set
OPTIONAL ACCESSORIES :
● Laser Line Projector
FHBS-H2232SA ● Hydraulic blade tension
● Roller Table
Specifications ● CE
FHBS-H1833SA FHBS-H2232SA
Capacity at 90 ● 460mm ■ 460mm ▬ 460x800mm ● 560mm ■ 560mm ▬ 560x800mm
Blade size 41mmx1.3mmx5800mm 41mmx1.3mmx6100mm
Motor 7.5HP 7.5HP
Speed range 15~90MPM 15~90MPM
Packing size 313cmx113cmx190cm 318cmx113cmx200cm
Net weight 1900Kgs 1950Kgs
Gross weight 2100Kgs 2150Kgs

Feature
● Accurate cutting angle setting by motor (only
H1833SAT)
● Manual blade tension w/ tension gauge
● Multi-strokes hydraulic vice
● Table movement by hydraulic (only H1833SAT)
● Saw bow height auto set by descending slide bar
● Variable blade speed by frequency inverter
● Variable vise pressure
● Digital readout (blade speed and SAT cutting
angel)
● Power driven chip brush
STANDARD ACCEESSORIES :
● Work Lamp
● Automatic Saw Blade Breakage Power off System
● Inverter
● Hydraulic Vice
● Digital Display (Blade Speed and SAT Cutting
FHBS-H1833SAT Angel)
Specifications ● Power Driven Chip Brush
● Manual Lubrication System
FHBS-H1833SAT ● Flush Gun
Capacity at 90 ● 460mm ■ 460mm ▬ 460x800mm ● Moter-driven Swivel Frame
● Hydraulic Unit
Capacity at 45 swivel frame ● 460mm ■ 460mm ● Coolant System
Capacity at 60 swivel frame ● 380mm ■ 380mm ● M42 bi-Metal Saw Blade -1pc
Blade size 41mmx1.3mmx6100mm ● Toolbox and Tool Kits-1set
Speed range 15~90MPM OPTIONAL ACCESSORIES :
Motor(blade) 7.5HP
Packing size 345cmx115cm x230cm ● Laser Line Projector
● Hydraulic blade tension
Net weight 2300Kgs ● Roller Table
Gross weight 2500Kgs ● CE
