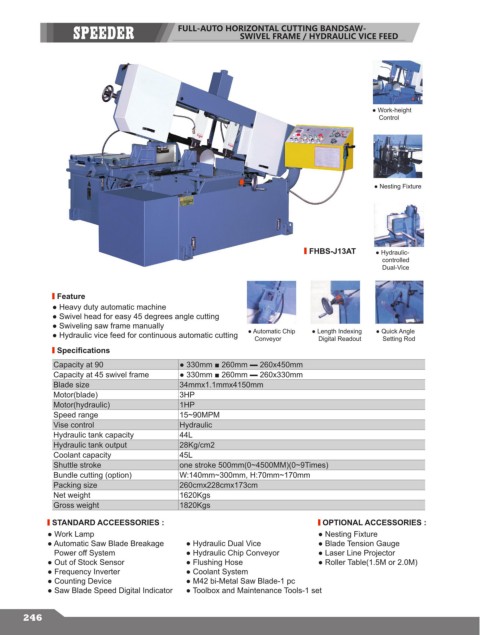

FULL-AUTO HORIZONTAL CUTTING BANDSAW-
SWIVEL FRAME / HYDRAULIC VICE FEED

● Work-height
Control

● Nesting Fixture

FHBS-J13AT ● Hydraulic-
controlled
Dual-Vice

Feature
● Heavy duty automatic machine
● Swivel head for easy 45 degrees angle cutting
● Swiveling saw frame manually
● Hydraulic vice feed for continuous automatic cutting ● Automatic Chip ● Length Indexing ● Quick Angle
Setting Rod
Digital Readout
Conveyor
Specifications
Capacity at 90 ● 330mm ■ 260mm ▬ 260x450mm
Capacity at 45 swivel frame ● 330mm ■ 260mm ▬ 260x330mm
Blade size 34mmx1.1mmx4150mm
Motor(blade) 3HP
Motor(hydraulic) 1HP
Speed range 15~90MPM
Vise control Hydraulic
Hydraulic tank capacity 44L
Hydraulic tank output 28Kg/cm2
Coolant capacity 45L
Shuttle stroke one stroke 500mm(0~4500MM)(0~9Times)
Bundle cutting (option) W:140mm~300mm, H:70mm~170mm
Packing size 260cmx228cmx173cm
Net weight 1620Kgs
Gross weight 1820Kgs
STANDARD ACCEESSORIES : OPTIONAL ACCESSORIES :
● Work Lamp ● Nesting Fixture
● Automatic Saw Blade Breakage ● Hydraulic Dual Vice ● Blade Tension Gauge
Power off System ● Hydraulic Chip Conveyor ● Laser Line Projector
● Out of Stock Sensor ● Flushing Hose ● Roller Table(1.5M or 2.0M)
● Frequency Inverter ● Coolant System
● Counting Device ● M42 bi-Metal Saw Blade-1 pc
● Saw Blade Speed Digital Indicator ● Toolbox and Maintenance Tools-1 set
