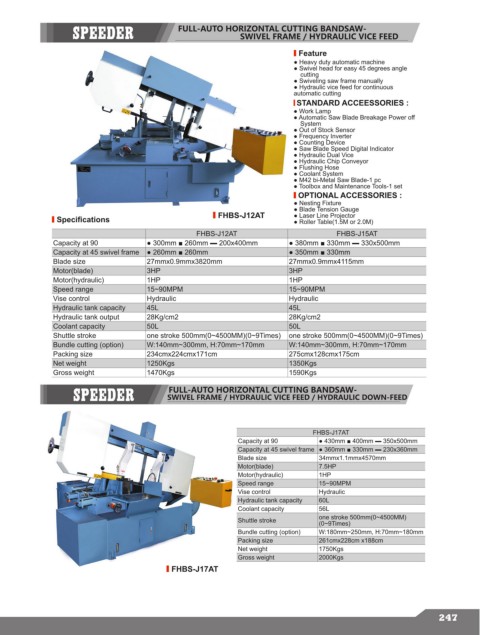

FULL-AUTO HORIZONTAL CUTTING BANDSAW-
SWIVEL FRAME / HYDRAULIC VICE FEED

Feature
● Heavy duty automatic machine
● Swivel head for easy 45 degrees angle
cutting
● Swiveling saw frame manually
● Hydraulic vice feed for continuous
automatic cutting
STANDARD ACCEESSORIES :
● Work Lamp
● Automatic Saw Blade Breakage Power off
System
● Out of Stock Sensor
● Frequency Inverter
● Counting Device
● Saw Blade Speed Digital Indicator
● Hydraulic Dual Vice
● Hydraulic Chip Conveyor
● Flushing Hose
● Coolant System
● M42 bi-Metal Saw Blade-1 pc
● Toolbox and Maintenance Tools-1 set
OPTIONAL ACCESSORIES :
● Nesting Fixture
● Blade Tension Gauge
Specifications FHBS-J12AT ● Laser Line Projector
● Roller Table(1.5M or 2.0M)
FHBS-J12AT FHBS-J15AT
Capacity at 90 ● 300mm ■ 260mm ▬ 200x400mm ● 380mm ■ 330mm ▬ 330x500mm
Capacity at 45 swivel frame ● 260mm ■ 260mm ● 350mm ■ 330mm
Blade size 27mmx0.9mmx3820mm 27mmx0.9mmx4115mm
Motor(blade) 3HP 3HP
Motor(hydraulic) 1HP 1HP
Speed range 15~90MPM 15~90MPM
Vise control Hydraulic Hydraulic
Hydraulic tank capacity 45L 45L
Hydraulic tank output 28Kg/cm2 28Kg/cm2
Coolant capacity 50L 50L
Shuttle stroke one stroke 500mm(0~4500MM)(0~9Times) one stroke 500mm(0~4500MM)(0~9Times)
Bundle cutting (option) W:140mm~300mm, H:70mm~170mm W:140mm~300mm, H:70mm~170mm
Packing size 234cmx224cmx171cm 275cmx128cmx175cm
Net weight 1250Kgs 1350Kgs
Gross weight 1470Kgs 1590Kgs
FULL-AUTO HORIZONTAL CUTTING BANDSAW-
SWIVEL FRAME / HYDRAULIC VICE FEED / HYDRAULIC DOWN-FEED

FHBS-J17AT
Capacity at 90 ● 430mm ■ 400mm ▬ 350x500mm
Capacity at 45 swivel frame ● 360mm ■ 330mm ▬ 230x360mm
Blade size 34mmx1.1mmx4570mm
Motor(blade) 7.5HP
Motor(hydraulic) 1HP
Speed range 15~90MPM
Vise control Hydraulic
Hydraulic tank capacity 60L
Coolant capacity 56L
Shuttle stroke one stroke 500mm(0~4500MM)
(0~9Times)
Bundle cutting (option) W:180mm~250mm, H:70mm~180mm
Packing size 261cmx228cm x188cm
Net weight 1750Kgs
Gross weight 2000Kgs
FHBS-J17AT
