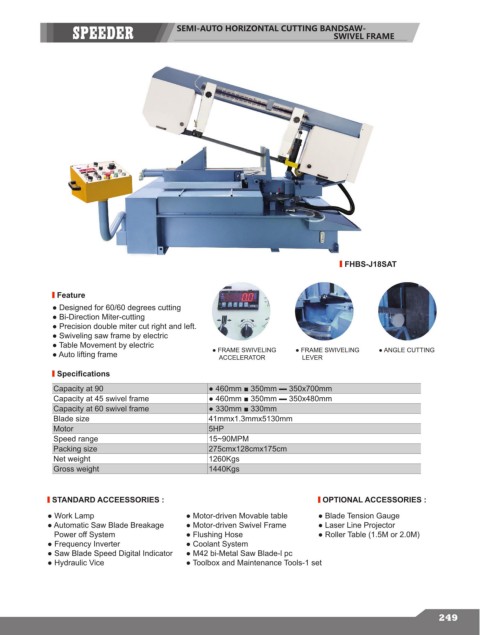

SEMI-AUTO HORIZONTAL CUTTING BANDSAW-
SWIVEL FRAME

FHBS-J18SAT

Feature
● Designed for 60/60 degrees cutting
● Bi-Direction Miter-cutting
● Precision double miter cut right and left.
● Swiveling saw frame by electric
● Table Movement by electric ● FRAME SWIVELING ● FRAME SWIVELING ● ANGLE CUTTING
● Auto lifting frame ACCELERATOR LEVER

Specifications
Capacity at 90 ● 460mm ■ 350mm ▬ 350x700mm
Capacity at 45 swivel frame ● 460mm ■ 350mm ▬ 350x480mm
Capacity at 60 swivel frame ● 330mm ■ 330mm
Blade size 41mmx1.3mmx5130mm
Motor 5HP
Speed range 15~90MPM
Packing size 275cmx128cmx175cm
Net weight 1260Kgs
Gross weight 1440Kgs

STANDARD ACCEESSORIES : OPTIONAL ACCESSORIES :

● Work Lamp ● Motor-driven Movable table ● Blade Tension Gauge
● Automatic Saw Blade Breakage ● Motor-driven Swivel Frame ● Laser Line Projector
Power off System ● Flushing Hose ● Roller Table (1.5M or 2.0M)
● Frequency Inverter ● Coolant System
● Saw Blade Speed Digital Indicator ● M42 bi-Metal Saw Blade-l pc
● Hydraulic Vice ● Toolbox and Maintenance Tools-1 set
