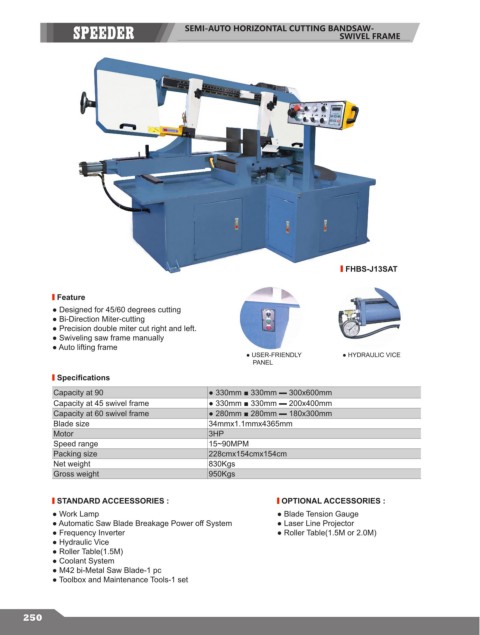

SEMI-AUTO HORIZONTAL CUTTING BANDSAW-
SWIVEL FRAME

FHBS-J13SAT

Feature
● Designed for 45/60 degrees cutting
● Bi-Direction Miter-cutting
● Precision double miter cut right and left.
● Swiveling saw frame manually
● Auto lifting frame
● USER-FRIENDLY ● HYDRAULIC VICE
PANEL
Specifications

Capacity at 90 ● 330mm ■ 330mm ▬ 300x600mm
Capacity at 45 swivel frame ● 330mm ■ 330mm ▬ 200x400mm
Capacity at 60 swivel frame ● 280mm ■ 280mm ▬ 180x300mm
Blade size 34mmx1.1mmx4365mm
Motor 3HP
Speed range 15~90MPM
Packing size 228cmx154cmx154cm
Net weight 830Kgs
Gross weight 950Kgs

STANDARD ACCEESSORIES : OPTIONAL ACCESSORIES :
● Work Lamp ● Blade Tension Gauge
● Automatic Saw Blade Breakage Power off System ● Laser Line Projector
● Frequency Inverter ● Roller Table(1.5M or 2.0M)
● Hydraulic Vice
● Roller Table(1.5M)
● Coolant System
● M42 bi-Metal Saw Blade-1 pc
● Toolbox and Maintenance Tools-1 set

250
