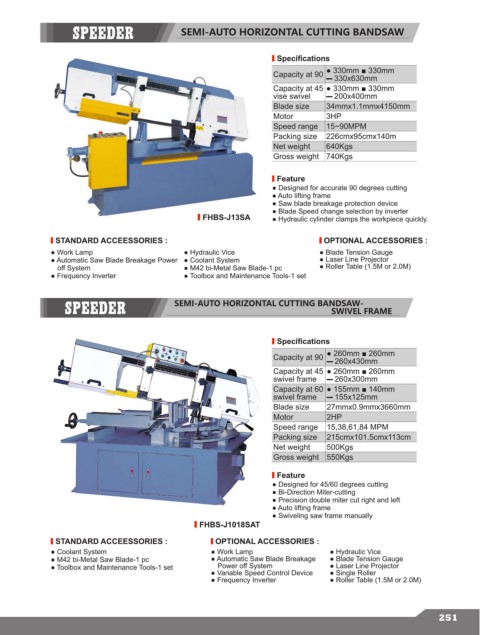

SEMI-AUTO HORIZONTAL CUTTING BANDSAW
STANDARD ACCEESSORIES :
● Work Lamp
● Automatic Saw Blade Breakage Power ● Coolant System
off System
● Frequency Inverter
SEMI-AUTO HORIZONTAL CUTTING BANDSAW-
STANDARD ACCEESSORIES :
● Coolant System
● M42 bi-Metal Saw Blade-1 pc
● Toolbox and Maintenance Tools-1 set
Specifications
Capacity at 90 ● 330mm ■ 330mm
▬ 330x630mm
Capacity at 45 ● 330mm ■ 330mm
vise swivel ▬ 200x400mm
Blade size 34mmx1.1mmx4150mm
Motor 3HP
Speed range 15~90MPM
Packing size 226cmx95cmx140m
Net weight 640Kgs
Gross weight 740Kgs
Feature
● Designed for accurate 90 degrees cutting
● Auto lifting frame
● Saw blade breakage protection device
● Blade Speed change selection by inverter
FHBS-J13SA ● Hydraulic cylinder clamps the workpiece quickly.
OPTIONAL ACCESSORIES :
● Hydraulic Vice ● Blade Tension Gauge
● Laser Line Projector
● M42 bi-Metal Saw Blade-1 pc ● Roller Table (1.5M or 2.0M)
● Toolbox and Maintenance Tools-1 set
SWIVEL FRAME
Specifications
Capacity at 90 ● 260mm ■ 260mm
▬ 260x430mm
Capacity at 45 ● 260mm ■ 260mm
swivel frame ▬ 260x300mm
Capacity at 60 ● 155mm ■ 140mm
swivel frame ▬ 155x125mm
Blade size 27mmx0.9mmx3660mm
Motor 2HP
Speed range 15,38,61,84 MPM
Packing size 215cmx101.5cmx113cm
Net weight 500Kgs
Gross weight 550Kgs
Feature
● Designed for 45/60 degrees cutting
● Bi-Direction Miter-cutting
● Precision double miter cut right and left
● Auto lifting frame
● Swiveling saw frame manually
FHBS-J1018SAT
OPTIONAL ACCESSORIES :
● Work Lamp ● Hydraulic Vice
● Automatic Saw Blade Breakage ● Blade Tension Gauge
Power off System ● Laser Line Projector
● Variable Speed Control Device ● Single Roller
● Frequency Inverter ● Roller Table (1.5M or 2.0M)
