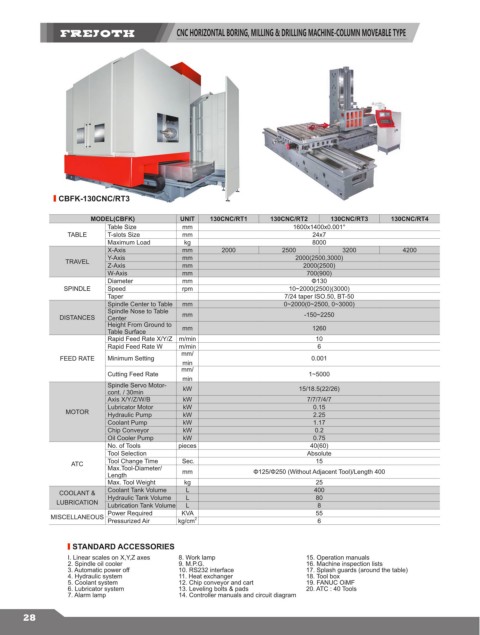

CNC HORIZONTAL BORING, MILLING & DRILLING MACHINE-COLUMN MOVEABLE TYPE

CBFK-130CNC/RT3

MODEL(CBFK) UNIT 130CNC/RT1 130CNC/RT2 130CNC/RT3 130CNC/RT4
Table Size mm 1600x1400x0.001°
TABLE T-slots Size mm 24x7
Maximum Load kg 8000
X-Axis mm 2000 2500 3200 4200
Y-Axis mm 2000(2500,3000)
TRAVEL
Z-Axis mm 2000(2500)
W-Axis mm 700(900)
Diameter mm Φ130
SPINDLE Speed rpm 10~2000(2500)(3000)
Taper 7/24 taper ISO.50, BT-50
Spindle Center to Table mm 0~2000(0~2500, 0~3000)
Spindle Nose to Table
DISTANCES Center mm -150~2250
Height From Ground to mm 1260
Table Surface
Rapid Feed Rate X/Y/Z m/min 10
Rapid Feed Rate W m/min 6
mm/
FEED RATE Minimum Setting 0.001
min
mm/
Cutting Feed Rate 1~5000
min
Spindle Servo Motor-
cont. / 30min kW 15/18.5(22/26)
Axis X/Y/Z/W/B kW 7/7/7/4/7
Lubricator Motor kW 0.15
MOTOR Hydraulic Pump kW 2.25
Coolant Pump kW 1.17
Chip Conveyor kW 0.2
Oil Cooler Pump kW 0.75
No. of Tools pieces 40(60)
Tool Selection Absolute
ATC Tool Change Time Sec. 15
Max.Tool-Diameter/
Length mm Φ125/Φ250 (Without Adjacent Tool)/Length 400
Max. Tool Weight kg 25
COOLANT & Coolant Tank Volume L 400
LUBRICATION Hydraulic Tank Volume L L 80
Lubrication Tank Volume
8
Power Required KVA 55
MISCELLANEOUS 2
Pressurized Air kg/cm 6
STANDARD ACCESSORIES
I. Linear scales on X,Y,Z axes 8. Work lamp 15. Operation manuals
2. Spindle oil cooler 9. M.P.G. 16. Machine inspection lists
3. Automatic power off 10. RS232 interface 17. Splash guards (around the table)
4. Hydraulic system 11. Heat exchanger 18. Tool box
5. Coolant system 12. Chip conveyor and cart 19. FANUC OiMF
6. Lubricator system 13. Leveling bolts & pads 20. ATC : 40 Tools
7. Alarm lamp 14. Controller manuals and circuit diagram
