P. 264

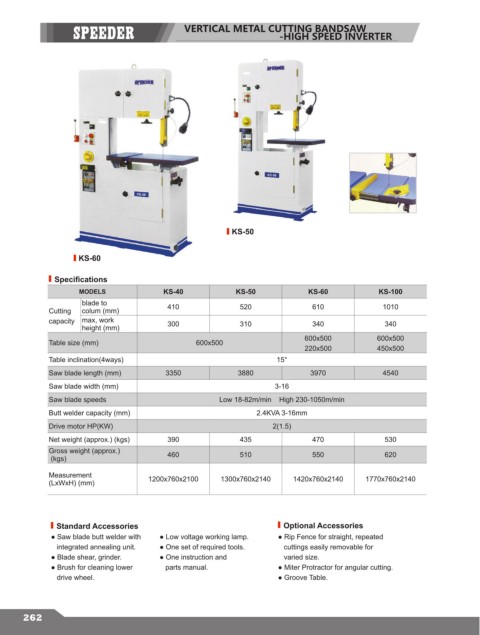

VERTICAL METAL CUTTING BANDSAW
                                                                                  -HIGH SPEED INVERTER





























                                                            KS-50


                     KS-60


               Specifications
                     MODELS                KS-40             KS-50              KS-60             KS-100
                      blade to
             Cutting   colum (mm)           410               520                610               1010
             capacity  max, work            300               310                340               340
                      height (mm)
                                                                               600x500           600x500
             Table size (mm)                       600x500
                                                                               220x500           450x500
             Table inclination(4ways)                                   15°
             Saw blade length (mm)         3350               3880              3970               4540
             Saw blade width (mm)                                      3-16
             Saw blade speeds                            Low 18-82m/min    High 230-1050m/min
             Butt welder capacity (mm)                            2.4KVA 3-16mm
             Drive motor HP(KW)                                        2(1.5)
             Net weight (approx.) (kgs)     390               435                470               530
             Gross weight (approx.)         460               510                550               620
              (kgs)

             Measurement               1200x760x2100     1300x760x2140      1420x760x2140     1770x760x2140
             (LxWxH) (mm)





               Standard Accessories                                      Optional Accessories
              ● Saw blade butt welder with   ● Low voltage working lamp.   ● Rip Fence for straight, repeated
                 integrated annealing unit.   ● One set of required tools.      cuttings easily removable for
              ● Blade shear, grinder.     ● One instruction and            varied size.
              ● Brush for cleaning lower      parts manual.             ● Miter Protractor for angular cutting.
                 drive wheel.                                           ● Groove Table.





       262
