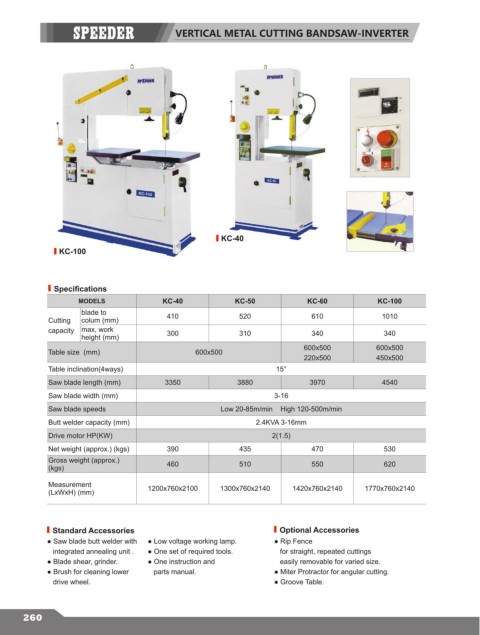

VERTICAL METAL CUTTING BANDSAW-INVERTER































                                                         KC-40
                KC-100




               Specifications
                     MODELS               KC-40              KC-50             KC-60             KC-100
                      blade to
             Cutting   colum (mm)           410               520                610               1010
             capacity  max, work            300               310                340               340
                      height (mm)
                                                                               600x500           600x500
             Table size  (mm)                      600x500
                                                                               220x500           450x500
             Table inclination(4ways)                                  15°
             Saw blade length (mm)         3350               3880              3970               4540
             Saw blade width (mm)                                      3-16
             Saw blade speeds                            Low 20-85m/min    High 120-500m/min

             Butt welder capacity (mm)                            2.4KVA 3-16mm
             Drive motor HP(KW)                                       2(1.5)
             Net weight (approx.) (kgs)     390               435                470               530
             Gross weight (approx.)         460               510                550               620
             (kgs)

             Measurement               1200x760x2100     1300x760x2140      1420x760x2140     1770x760x2140
             (LxWxH) (mm)




              Standard Accessories                                      Optional Accessories
             ● Saw blade butt welder with   ● Low voltage working lamp.   ● Rip Fence
                integrated annealing unit .   ● One set of required tools.      for straight, repeated cuttings
             ● Blade shear, grinder.   ● One instruction and              easily removable for varied size.
             ● Brush for cleaning lower      parts manual.             ● Miter Protractor for angular cutting.
                drive wheel.                                           ● Groove Table.
