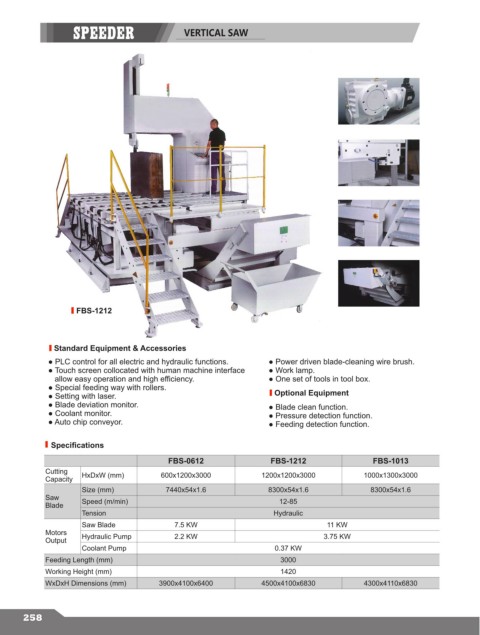

VERTICAL SAW

FBS-1212

Standard Equipment & Accessories
● PLC control for all electric and hydraulic functions. ● Power driven blade-cleaning wire brush.
● Touch screen collocated with human machine interface ● Work lamp.
allow easy operation and high efficiency. ● One set of tools in tool box.
● Special feeding way with rollers.
● Setting with laser. Optional Equipment
● Blade deviation monitor. ● Blade clean function.
● Coolant monitor. ● Pressure detection function.
● Auto chip conveyor. ● Feeding detection function.

Specifications

FBS-0612 FBS-1212 FBS-1013
Cutting HxDxW (mm) 600x1200x3000 1200x1200x3000 1000x1300x3000
Capacity
Size (mm) 7440x54x1.6 8300x54x1.6 8300x54x1.6
Saw Speed (m/min) 12-85
Blade
Tension Hydraulic
Saw Blade 7.5 KW 11 KW
Motors Hydraulic Pump 2.2 KW 3.75 KW
Output
Coolant Pump 0.37 KW
Feeding Length (mm) 3000
Working Height (mm) 1420
WxDxH Dimensions (mm) 3900x4100x6400 4500x4100x6830 4300x4110x6830
