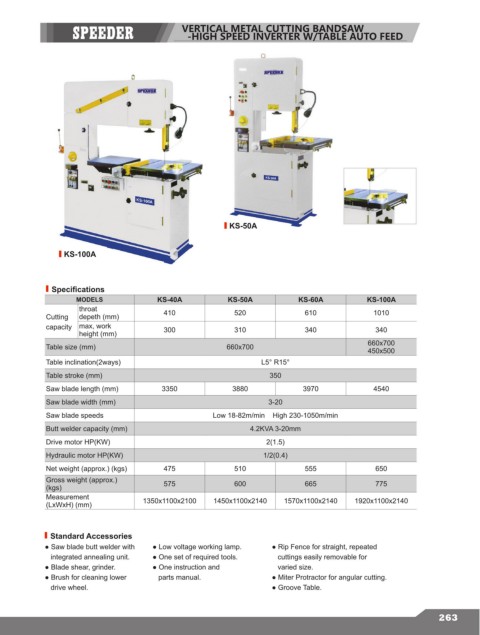

VERTICAL METAL CUTTING BANDSAW
                                                 -HIGH SPEED INVERTER W/TABLE AUTO FEED




























                                                            KS-50A



                 KS-100A



              Specifications
                    MODELS               KS-40A            KS-50A            KS-60A            KS-100A
                     throat                410               520               610              1010
             Cutting   depeth (mm)
             capacity  max, work           300               310               340               340
                     height (mm)
                                                                                               660x700
             Table size (mm)                               660x700
                                                                                               450x500
             Table inclination(2ways)                               L5° R15°
             Table stroke (mm)                                        350
             Saw blade length (mm)        3350              3880              3970              4540
             Saw blade width (mm)                                     3-20

             Saw blade speeds                          Low 18-82m/min    High 230-1050m/min
             Butt welder capacity (mm)                           4.2KVA 3-20mm
             Drive motor HP(KW)                                      2(1.5)
             Hydraulic motor HP(KW)                                 1/2(0.4)
             Net weight (approx.) (kgs)    475               510               555               650
             Gross weight (approx.)        575               600               665               775
             (kgs)
             Measurement             1350x1100x2100    1450x1100x2140    1570x1100x2140     1920x1100x2140
             (LxWxH) (mm)

 Optional Accessories
              Standard Accessories
            ● Saw blade butt welder with   ● Low voltage working lamp.   ● Rip Fence for straight, repeated
               integrated annealing unit.   ● One set of required tools.      cuttings easily removable for
            ● Blade shear, grinder.     ● One instruction and            varied size.
            ● Brush for cleaning lower      parts manual.             ● Miter Protractor for angular cutting.
               drive wheel.                                           ● Groove Table.
