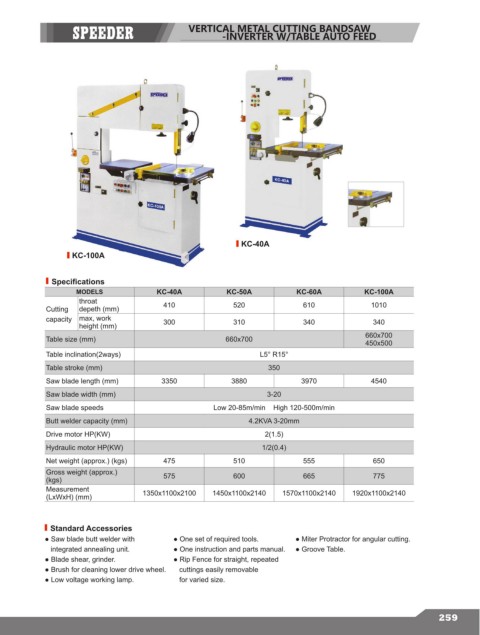

VERTICAL METAL CUTTING BANDSAW
                                                             -INVERTER W/TABLE AUTO FEED































                                                               KC-40A
                   KC-100A


              Specifications
                    MODELS               KC-40A            KC-50A            KC-60A           KC-100A
                     throat                410               520              610               1010
             Cutting   depeth (mm)
             capacity  max, work           300               310              340               340
                     height (mm)
                                                                                              660x700
             Table size (mm)                               660x700
                                                                                              450x500
             Table inclination(2ways)                              L5° R15°
             Table stroke (mm)                                       350
             Saw blade length (mm)        3350              3880              3970              4540
             Saw blade width (mm)                                    3-20
             Saw blade speeds                          Low 20-85m/min    High 120-500m/min
             Butt welder capacity (mm)                          4.2KVA 3-20mm
             Drive motor HP(KW)                                      2(1.5)

             Hydraulic motor HP(KW)                                 1/2(0.4)
             Net weight (approx.) (kgs)    475               510              555               650
             Gross weight (approx.)        575               600              665               775
             (kgs)
             Measurement             1350x1100x2100    1450x1100x2140    1570x1100x2140    1920x1100x2140
             (LxWxH) (mm)



              Standard Accessories
            ● Saw blade butt welder with     ● One set of required tools.   ● Miter Protractor for angular cutting.
               integrated annealing unit.    ● One instruction and parts manual.  ● Groove Table.
            ● Blade shear, grinder.          ● Rip Fence for straight, repeated
            ● Brush for cleaning lower drive wheel.     cuttings easily removable
            ● Low voltage working lamp.         for varied size.




                                                                                                                 259
