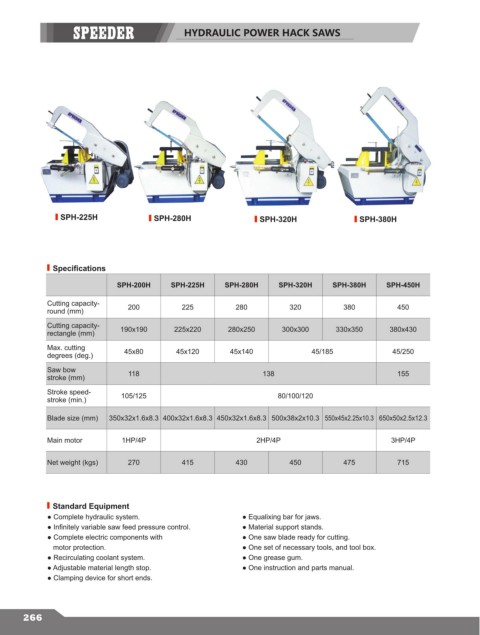

HYDRAULIC POWER HACK SAWS

SPH-225H SPH-280H SPH-320H SPH-380H

Specifications

SPH-200H SPH-225H SPH-280H SPH-320H SPH-380H SPH-450H

Cutting capacity- 200 225 280 320 380 450
round (mm)
Cutting capacity- 190x190 225x220 280x250 300x300 330x350 380x430
rectangle (mm)

Max. cutting 45x80 45x120 45x140 45/185 45/250
degrees (deg.)
Saw bow 118 138 155
stroke (mm)
Stroke speed- 105/125 80/100/120
stroke (min.)

Blade size (mm) 350x32x1.6x8.3 400x32x1.6x8.3 450x32x1.6x8.3 500x38x2x10.3 550x45x2.25x10.3 650x50x2.5x12.3

Main motor 1HP/4P 2HP/4P 3HP/4P

Net weight (kgs) 270 415 430 450 475 715

Standard Equipment
● Complete hydraulic system. ● Equalixing bar for jaws.
● Infinitely variable saw feed pressure control. ● Material support stands.
● Complete electric components with ● One saw blade ready for cutting.
motor protection. ● One set of necessary tools, and tool box.
● Recirculating coolant system. ● One grease gum.
● Adjustable material length stop. ● One instruction and parts manual.
● Clamping device for short ends.
