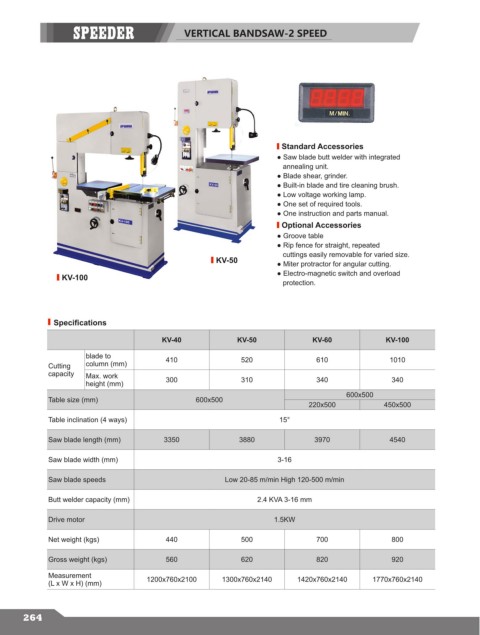

VERTICAL BANDSAW-2 SPEED

Standard Accessories
● Saw blade butt welder with integrated
annealing unit.
● Blade shear, grinder.
● Built-in blade and tire cleaning brush.
● Low voltage working lamp.
● One set of required tools.
● One instruction and parts manual.
Optional Accessories
● Groove table
● Rip fence for straight, repeated
cuttings easily removable for varied size.
KV-50 ● Miter protractor for angular cutting.
KV-100 ● Electro-magnetic switch and overload
protection.

Specifications

KV-40 KV-50 KV-60 KV-100
blade to 410 520 610 1010
Cutting column (mm)
capacity Max. work
height (mm) 300 310 340 340
600x500
Table size (mm) 600x500
220x500 450x500
Table inclination (4 ways) 15°

Saw blade length (mm) 3350 3880 3970 4540

Saw blade width (mm) 3-16

Saw blade speeds Low 20-85 m/min High 120-500 m/min

Butt welder capacity (mm) 2.4 KVA 3-16 mm

Drive motor 1.5KW

Net weight (kgs) 440 500 700 800

Gross weight (kgs) 560 620 820 920

Measurement 1200x760x2100 1300x760x2140 1420x760x2140 1770x760x2140
(L x W x H) (mm)
