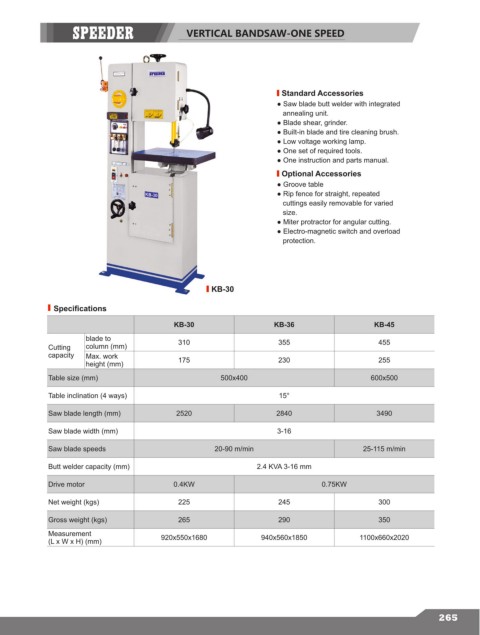

VERTICAL BANDSAW-ONE SPEED
Standard Accessories
● Saw blade butt welder with integrated
annealing unit.
● Blade shear, grinder.
● Built-in blade and tire cleaning brush.
● Low voltage working lamp.
● One set of required tools.
● One instruction and parts manual.
Optional Accessories
● Groove table
● Rip fence for straight, repeated
cuttings easily removable for varied
size.
● Miter protractor for angular cutting.
● Electro-magnetic switch and overload
protection.
KB-30
Specifications
KB-30 KB-36 KB-45
blade to 310 355 455
Cutting column (mm)
capacity Max. work
height (mm) 175 230 255
Table size (mm) 500x400 600x500
Table inclination (4 ways) 15°
Saw blade length (mm) 2520 2840 3490
Saw blade width (mm) 3-16
Saw blade speeds 20-90 m/min 25-115 m/min
Butt welder capacity (mm) 2.4 KVA 3-16 mm
Drive motor 0.4KW 0.75KW
Net weight (kgs) 225 245 300
Gross weight (kgs) 265 290 350
Measurement 920x550x1680 940x560x1850 1100x660x2020
(L x W x H) (mm)
