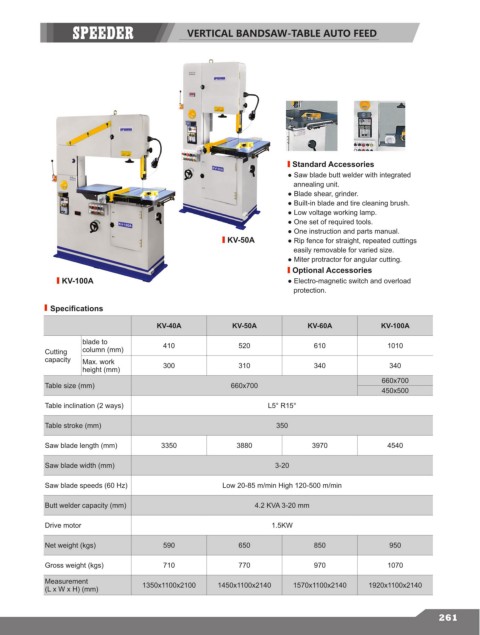

VERTICAL BANDSAW-TABLE AUTO FEED



















                                                                            Standard Accessories
                                                                          ● Saw blade butt welder with integrated
                                                                             annealing unit.
                                                                          ● Blade shear, grinder.
                                                                          ● Built-in blade and tire cleaning brush.
                                                                          ● Low voltage working lamp.
                                                                          ● One set of required tools.
                                                                          ● One instruction and parts manual.
                                                           KV-50A         ● Rip fence for straight, repeated cuttings
                                                                             easily removable for varied size.
                                                                          ● Miter protractor for angular cutting.
                                                                            Optional Accessories
                 KV-100A                                                  ● Electro-magnetic switch and overload
                                                                             protection.
              Specifications

                                         KV-40A             KV-50A              KV-60A            KV-100A

                      blade to             410                520                610                1010
            Cutting   column (mm)
            capacity  Max. work
                      height (mm)          300                310                340                340
                                                                                                  660x700
            Table size (mm)                                 660x700
                                                                                                  450x500
            Table inclination (2 ways)                               L5° R15°

            Table stroke (mm)                                           350

            Saw blade length (mm)         3350               3880                3970               4540


            Saw blade width (mm)                                       3-20

            Saw blade speeds (60 Hz)                      Low 20-85 m/min High 120-500 m/min

            Butt welder capacity (mm)                             4.2 KVA 3-20 mm

            Drive motor                                               1.5KW
 Optional Accessories
            Net weight (kgs)               590                650                850                950


            Gross weight (kgs)             710                770                970                1070
            Measurement              1350x1100x2100      1450x1100x2140     1570x1100x2140     1920x1100x2140
            (L x W x H) (mm)
