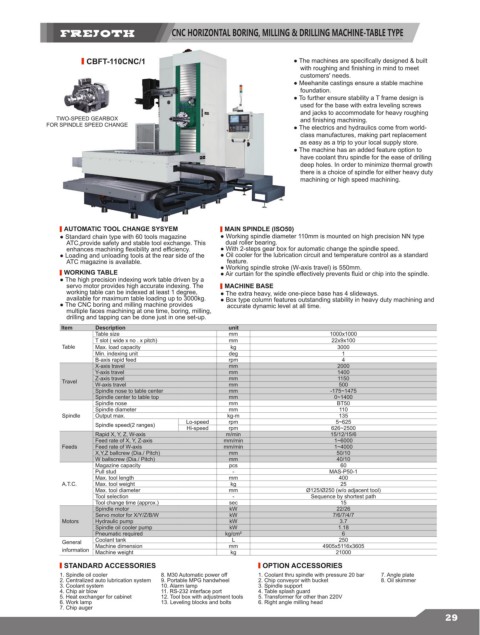

CNC HORIZONTAL BORING, MILLING & DRILLING MACHINE-TABLE TYPE

CBFT-110CNC/1 ● The machines are specifically designed & built
with roughing and finishing in mind to meet
customers' needs.
● Meehanite castings ensure a stable machine
foundation.
● To further ensure stability a T frame design is
used for the base with extra leveling screws
and jacks to accommodate for heavy roughing
TWO-SPEED GEARBOX and finishing machining.
FOR SPINDLE SPEED CHANGE ● The electrics and hydraulics come from world-
class manufactures, making part replacement
as easy as a trip to your local supply store.
● The machine has an added feature option to
have coolant thru spindle for the ease of drilling
deep holes. In order to minimize thermal growth
there is a choice of spindle for either heavy duty
machining or high speed machining.

AUTOMATIC TOOL CHANGE SYSYEM MAIN SPINDLE (ISO50)
● Standard chain type with 60 tools magazine ● Working spindle diameter 110mm is mounted on high precision NN type
ATC,provide safety and stable tool exchange. This dual roller bearing.
enhances machining flexibility and efficiency. ● With 2-steps gear box for automatic change the spindle speed.
● Loading and unloading tools at the rear side of the ● Oil cooler for the lubrication circuit and temperature control as a standard
ATC magazine is available. feature.
WORKING TABLE ● Working spindle stroke (W-axis travel) is 550mm.
● Air curtain for the spindle effectively prevents fluid or chip into the spindle.
● The high precision indexing work table driven by a
servo motor provides high accurate indexing. The MACHINE BASE
working table can be indexed at least 1 degree, ● The extra heavy, wide one-piece base has 4 slideways.
available for maximum table loading up to 3000kg. ● Box type column features outstanding stability in heavy duty machining and
● The CNC boring and milling machine provides accurate dynamic level at all time.
multiple faces machining at one time, boring, milling,
drilling and tapping can be done just in one set-up.
Item Description unit
Table size mm 1000x1000
T slot ( wide x no . x pitch) mm 22x9x100
Table Max. load capacity kg 3000
Min. indexing unit deg 1
B-axis rapid feed rpm 4
X-axis travel mm 2000
Y-axis travel mm 1400
Travel Z-axis travel mm 1150
mm
W-axis travel
500
Spindle nose to table center mm -175~1475
Spindle center to table top mm 0~1400
Spindle nose mm BT50
Spindle diameter mm 110
Spindle Output max. kg-m 135
Lo-speed rpm 5~625
Spindle speed(2 ranges)
Hi-speed rpm 626~2500
Rapid X, Y, Z, W-axis m/min 15/12/15/6
Feed rate of X, Y, Z-axis mm/min 1~6000
Feeds Feed rate of W-axis mm/min 1~4000
X,Y,Z ballcrew (Dia./ Pitch) mm 50/10
W ballscrew (Dia./ Pitch) mm 40/10
Magazine capacity pcs 60
Pull stud - MAS-P50-1
Max. tool length mm 400
A.T.C. Max. tool weight kg 25
Max. tool diameter mm Ø125/Ø250 (w/o adjacent tool)
Tool selection - Sequence by shortest path
Tool change time (approx.) sec 15
Spindle motor kW 22/26
Servo motor for X/Y/Z/B/W kW 7/6/7/4/7
Motors Hydraulic pump kW 3.7
Spindle oil cooler pump kW 1.18
Pneumatic required kg/cm² 6
L
250
General Coolant tank mm 4905x5116x3605
Machine dimension
information Machine weight kg 21000
STANDARD ACCESSORIES OPTION ACCESSORIES
1. Spindle oil cooler 8. M30 Automatic power off 1. Coolant thru spindle with pressure 20 bar 7. Angle plate
2. Centralized auto lubrication system 9. Portable MPG handwheel 2. Chip conveyor with bucket 8. Oil skimmer
3. Coolant system 10. Alarm lamp 3. Spindle support
4. Chip air blow 11. RS-232 interface port 4. Table splash guard
5. Heat exchanger for cabinet 12. Tool box with adjustment tools 5. Transformer for other than 220V
6. Work lamp 13. Leveling blocks and bolts 6. Right angle milling head
7. Chip auger
