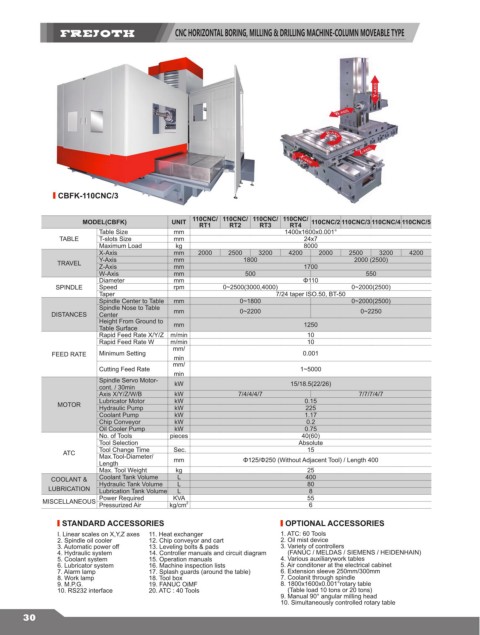

CNC HORIZONTAL BORING, MILLING & DRILLING MACHINE-COLUMN MOVEABLE TYPE

CBFK-110CNC/3

MODEL(CBFK) UNIT 110CNC/ 110CNC/ 110CNC/ 110CNC/ 110CNC/2 110CNC/3 110CNC/4 110CNC/5
RT1
RT4
RT3
RT2
Table Size mm 1400x1600x0.001°
TABLE T-slots Size mm 24x7
Maximum Load kg 8000
X-Axis mm 2000 2500 3200 4200 2000 2500 3200 4200
TRAVEL Y-Axis mm 1800 1700 2000 (2500)
Z-Axis
mm
W-Axis mm 500 550
Diameter mm Φ110
SPINDLE Speed rpm 0~2500(3000,4000) 0~2000(2500)
Taper 7/24 taper ISO.50, BT-50
Spindle Center to Table mm 0~1800 0~2000(2500)
Spindle Nose to Table
DISTANCES Center mm 0~2200 0~2250
Height From Ground to
Table Surface mm 1250
Rapid Feed Rate X/Y/Z m/min 10
Rapid Feed Rate W m/min 10
mm/
FEED RATE Minimum Setting min 0.001
mm/
Cutting Feed Rate 1~5000
min
Spindle Servo Motor-
cont. / 30min kW 15/18.5(22/26)
Axis X/Y/Z/W/B kW 7/4/4/4/7 7/7/7/4/7
MOTOR Lubricator Motor kW 0.15
kW
Hydraulic Pump
225
Coolant Pump kW 1.17
Chip Conveyor kW 0.2
Oil Cooler Pump kW 0.75
No. of Tools pieces 40(60)
Tool Selection Absolute
ATC Tool Change Time Sec. 15
Max.Tool-Diameter/
Length mm Φ125/Φ250 (Without Adjacent Tool) / Length 400
Max. Tool Weight kg 25
COOLANT & Coolant Tank Volume L 400
LUBRICATION Hydraulic Tank Volume L 80
L
8
Lubrication Tank Volume
MISCELLANEOUS Power Required KVA 2 55
Pressurized Air kg/cm 6
STANDARD ACCESSORIES OPTIONAL ACCESSORIES
I. Linear scales on X,Y,Z axes 11. Heat exchanger 1. ATC: 60 Tools
2. Spindle oil cooler 12. Chip conveyor and cart 2. Oil mist device
3. Automatic power off 13. Leveling bolts & pads 3. Variety of controllers
4. Hydraulic system 14. Controller manuals and circuit diagram (FANUC / MELDAS / SIEMENS / HEIDENHAIN)
5. Coolant system 15. Operation manuals 4. Various auxiliarywork tables
6. Lubricator system 16. Machine inspection lists 5. Air conditoner at the electrical cabinet
7. Alarm lamp 17. Splash guards (around the table) 6. Extension sleeve 250mm/300mm
8. Work lamp 18. Tool box 7. Coolanit through spindle
9. M.P.G. 19. FANUC OiMF 8. 1800x1600x0.001°rotary table
10. RS232 interface 20. ATC : 40 Tools (Table load 10 tons or 20 tons)
9. Manual 90° angular milling head
10. Simultaneously controlled rotary table
