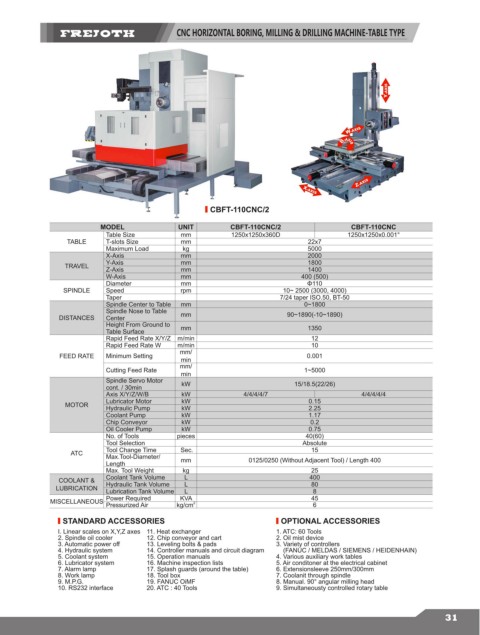

CNC HORIZONTAL BORING, MILLING & DRILLING MACHINE-TABLE TYPE

Y-AXIS

W-AXIS

B-AXIS

Z-AXIS
X-AXIS
CBFT-110CNC/2

MODEL UNIT CBFT-110CNC/2 CBFT-110CNC
Table Size mm 1250x1250x360D 1250x1250x0.001°
TABLE T-slots Size mm 22x7
Maximum Load kg 5000
X-Axis mm 2000
TRAVEL Y-Axis mm 1800
Z-Axis mm 1400
W-Axis mm 400 (500)
Diameter mm Φ110
SPINDLE Speed rpm 10~ 2500 (3000, 4000)
Taper 7/24 taper ISO.50, BT-50
Spindle Center to Table mm 0~1800
Spindle Nose to Table
DISTANCES Center mm 90~1890(-10~1890)
Height From Ground to mm 1350
Table Surface
Rapid Feed Rate X/Y/Z m/min 12
Rapid Feed Rate W m/min 10
FEED RATE Minimum Setting mm/ 0.001
min
mm/
Cutting Feed Rate min 1~5000
Spindle Servo Motor
cont. / 30min kW 15/18.5(22/26)
Axis X/Y/Z/W/B kW 4/4/4/4/7 4/4/4/4/4
MOTOR Lubricator Motor kW 0.15
2.25
Hydraulic Pump
kW
Coolant Pump kW 1.17
Chip Conveyor kW 0.2
Oil Cooler Pump kW 0.75
No. of Tools pieces 40(60)
Tool Selection Absolute
ATC Tool Change Time Sec. 15
Max.Tool-Diameter/
Length mm 0125/0250 (Without Adjacent Tool) / Length 400
Max. Tool Weight kg 25
COOLANT & Coolant Tank Volume L 400
LUBRICATION Hydraulic Tank Volume L 80
Lubrication Tank Volume
8
L
MISCELLANEOUS Power Required KVA 2 45
Pressurized Air kg/cm 6
STANDARD ACCESSORIES OPTIONAL ACCESSORIES
I. Linear scales on X,Y,Z axes 11. Heat exchanger 1. ATC: 60 Tools
2. Spindle oil cooler 12. Chip conveyor and cart 2. Oil mist device
3. Automatic power off 13. Leveling bolts & pads 3. Variety of controllers
4. Hydraulic system 14. Controller manuals and circuit diagram (FANUC / MELDAS / SIEMENS / HEIDENHAIN)
5. Coolant system 15. Operation manuals 4. Various auxiliary work tables
6. Lubricator system 16. Machine inspection lists 5. Air conditoner at the electrical cabinet
7. Alarm lamp 17. Splash guards (around the table) 6. Extensionsleeve 250mm/300mm
8. Work lamp 18. Tool box 7. Coolanit through spindle
9. M.P.G. 19. FANUC OiMF 8. Manual. 90° angular milling head
10. RS232 interface 20. ATC : 40 Tools 9. Simultaneousty controlled rotary table
